Mini 1CH Singlemode / Multimode Fiber Video Converter
MINI 1CH Video Optical Converter Single Mode / Multimode Single/Dual Fiber
Technical Parameters
| Optical | |
| Wavelengt | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode (9/125um) 20Km, multimode (50/125um) 5Km, ( 62.5/125um) 2Km |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 1ch, from camera to control center |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -35℃～+75℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone | 83mm ×41mm ×25mm |
| Weight | 0.1kg/piece (Net Weight), 0.3 kg/pair (Gross Weight) |
Product introduction
MINI 1CH Video Optical Converter transmits 1ch video signals on optical fiber. On 9/125um Single mode fiber its working distance is 20Km to 80KM while on multimode fiber it’s 5Km. The featured excellence of this model is its mini size: 83mm *41mm *25mm.
Product features
1. Mini Size: 83mm×41mm ×25mm.
2. Lightning-proof solution
3, Low optical link loss – max 30dB
4. Without EMI, RFI and ground loop
5. Bi-di transmission on 1 fiber with WDM
6. Hot plug-and-play with switch power supply

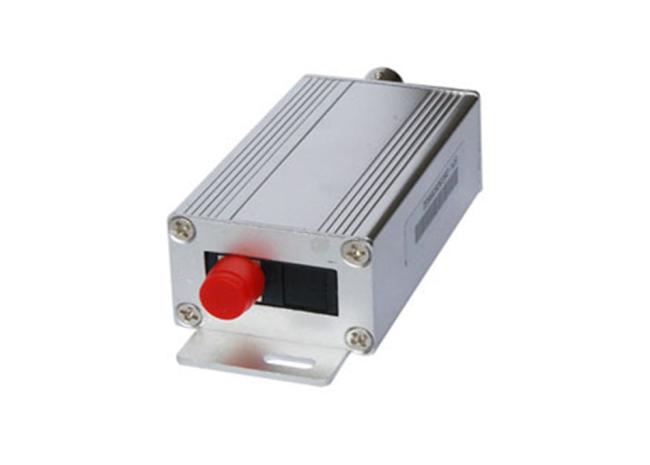

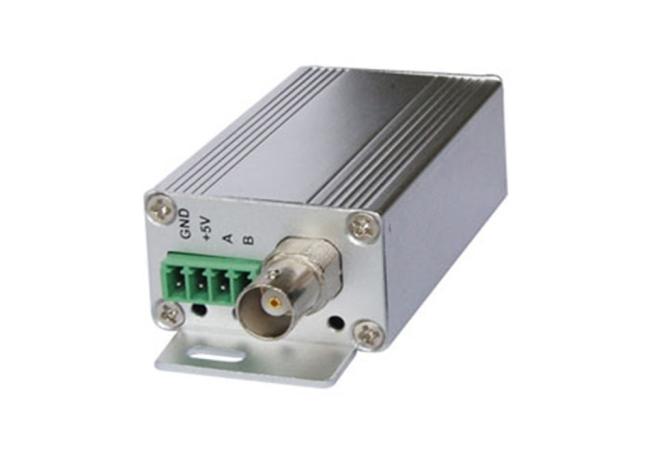

Product picture
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
