City Power 8 POE Ports SFP Fiber Switch Wall Mounted
Full Gigabit POE SFP Fiber Switch 8 POE Ports + 2 SFP Ports + 2 Uplink Ports
Technical Parameters
| Item | Description | |
| Model | AEO-808GP-2G1SFP | |
| Power Supply | Power Supply Mode | City power |
| Voltage Range | AC100-240V | |
| Power Consumption | The device <5W, POE power supply <96/120W | |
| Network Port Parameter | Network Ports |
1～8 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink 2 SFP:1.25Gbps and 2 10/100/100Mbps RJ45 |
| Transmission Distance |
1~8 Ethernet Port:0~100m Mandatory 10 Mbps reach up to 250m 2 uplink Ethernet Port:0~100m 2 SFP: According to different SFP |
|
| Transmission Media |
1~10 Ethernet Port:Cat5e/6 standard UTP cable, 2 SFP: LC interface optical fiber |
|
| POE Agreement | IEEE802.3 af/at standards | |
| PoE Power Supply Mode | End-span method | |
| PoE Power Supply Wattage | Each port≤30W,Whole device<96/120W | |
| Network Switch Specification | Network Standard | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T |
| Swap Mode | Store-and- forward | |
| Switch Capacity | 22Gbps | |
| MAC Address List | 8K | |
| Status Indicators | Power Indicator Light | One power light (green) |
| Optical Fiber Port Indicator | One fiber link indication light ( green), Green light keeps on when the fiber port is well connected | |
| PoE Indicator | 1~8 PoE indicator light(yellow) | |
| PoE Network Port LED | 1~10 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |
| Protection Level | Surge Immunity | Level 3, executive standard:IEC61000-4-5 |
| Electrostatic Protection | 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2 | |
| Operating Environment | Working Temperature | -10℃～55℃ |
| Storage Temperature | -40℃-85℃ | |
| Humidity(non-congeal) | 0~95% | |
| Mechanical Attributes | Dimensions (L*W*H) | 202X140X45MM |
| Color | Black | |
| Weight | 1kg | |
| Reliability | Mean time between failures (MTBF) | ＞50000h |
Product Overview
To fulfill the demand of High Power PoE for network applications with Gigabit transmission, AEO-808GP-2G1SFP PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the AEO-808GP-2G1SFP features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 96/120-watt PoE budget on the whole system, It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / speed dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices by doubling PoE power, more than the current conventional 802.3af PoE.
All RJ45 copper interfaces of the AEO-808GP-2G1SFP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. 2 extra 10/100/100Mbps RJ45 and 2 extra 1.25Gbps SFP slots can be used for uplink.
Product features
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- 8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
- 2-Port 10/100/1000Mbps RJ45 interface for uplink
- 2 1.25Gbps SFP interface for uplink
- Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span AEO
- Up to 8 IEEE 802.3af devices powered
- Supports PoE Power up to 15.4 watts for each PoE port
- Up to 4 IEEE 802.3at devices powered
- Supports PoE Power up to 30 watts for each PoE port
- 120-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 2M packet buffer
- 10K Jumbo frame supports at 1000Mbps duplex mode
- IEEE 802.1Q VLAN packet transparency support
- Automatic address learning and address aging
- Made of metal, desktop size and wall-mount design

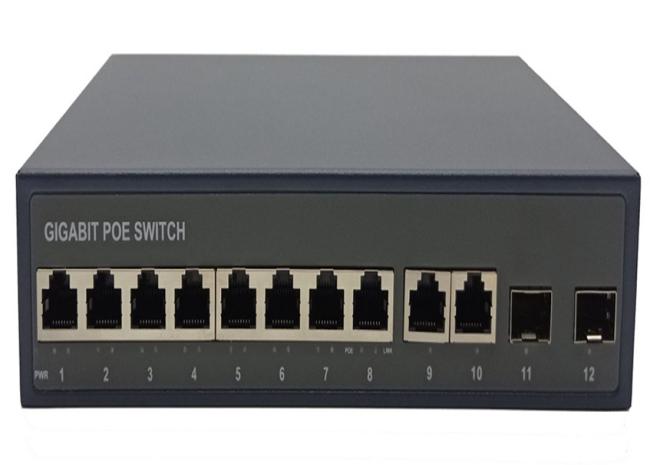

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
