POE Gigabit Ethernet Switch with 16 POE Ports 2 Uplink Ports
Full Gigabit POE Ethernet Switch 16 POE Ports + 2 Uplink Ports
Technical Parameters
| Item | Description | |
| Model | AEO-816GP-2G | |
| Power Supply | Voltage Range | AC 100-240V |
| Power Consumption | The device <5W, POE power supply <260W | |
| Network Port Parameter | Network Ports |
1～16 Ports: 10/100/1000Mbps Ethernet port, adaptive control 2-Port 10/100/1000Mbps RJ45 interface for uplink |
| Transmission Distance | 1~18 Ethernet Port:0~100m | |
| Transmission Media | 1~18 Ethernet Port:Cat5e/6 standard UTP cable | |
| POE Agreement | IEEE802.3 af/at standards | |
| PoE Power Supply Mode | End-span method | |
| PoE Power Supply Wattage | Each port≤30W,Whole device<260W | |
| Network Switch Specification | Network Standard | IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T |
| Swap Mode | Store-and- forward | |
| Switch Capacity | 36Gbps | |
| MAC Address List | 8K | |
| Status Indicators | Power Indicator Light | One power light (green) |
| PoE Indicator | 1~16 PoE indicator light(yellow) | |
| Network Port LED | 1~18 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |
| Protection Level | Surge Immunity | Level 3, executive standard:IEC61000-4-5 |
| Electrostatic Protection | 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2 | |
| Operating Environment | Working Temperature | -10℃～55℃ |
| Storage Temperature | -40℃-85℃ | |
| Humidity(non-congeal) | 0~95% | |
| Mechanical Attributes | Dimensions (L*W*H) | 310mm×180mm×44.5mm |
| Color | Black | |
| Weight | 3kg | |
| Reliability | Mean time between failures (MTBF) | ＞50000h |
Product Overview
To fulfill the demand of High Power PoE for network applications with Gigabit transmission, AEO-816GP-2G PoE Gigabit Ethernet Switch is an ideal solution. Each 10/100/1000Mbps port of the it features IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) that combine up to 260-watt PoE budget on the whole system. All RJ45 copper interfaces of it support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Product features
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
- 16-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device
- 2-Port 10/100/1000Mbps RJ45 interface for uplink
- Complies with IEEE 802.3af/802.3at Power over Ethernet End-Span AEO
- Up to 16 IEEE 802.3af devices powered
- Supports PoE Power up to 15.4 watts for each PoE port
- Up to 8 IEEE 802.3at devices powered
- Supports PoE Power up to 30 watts for each PoE port
- 260-watt PoE budget
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- Automatic address learning and address aging
- Made of metal, desktop size and wall-mount design

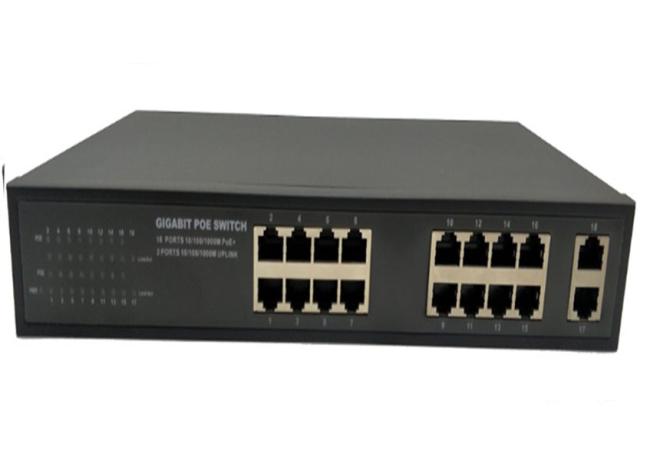

Product Picture
