Full Gigabit POE SFP Fiber Switch With 24 POE Ports 1 SFP Port 1 Uplink Port
Full Gigabit POE SFP Fiber Switch 24 POE Ports + 1 SFP Port + 1 Uplink Port
Technical Parameters
| Item | Description | |||
| Model | AEO-824GP-1G1SFP | |||
| Power Supply | Power Supply Mode | Mains on load | ||
| Voltage Range | AC 100～240V | |||
| Power Consumption | The device <15W, POE power supply <320W | |||
| Network Port Parameter | Network Ports |
1～24 Ports: 10/100/1000Mbps Ethernet port, adaptive control UPLINK Ethernet port: 10/100/1000Mbps Ethernet port Uplink SFP:1.25Gbps |
||
| Transmission Distance |
1~24 Ethernet Port:0~100m 1 Ethernet Uplink Port:0~100m 1 SFP: According to different SFP |
|||
| Transmission Media |
1~24 Ethernet Port:Cat5e/6 standard UTP cable, 1 Ethernet Uplink Port:Cat5e/6 standard UTP cable 1 SFP: LC interface optical fiber |
|||
| POE Agreement |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
|||
| PoE Power Supply Mode | End-span method | |||
| PoE Power Supply Wattage | Each port≤30W,Whole device<400W | |||
| Network Switch Specification | Network Standard |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure |
||
| Swap Mode | Store-and- forward | |||
| Switch Capacity | 52Gbps | |||
| MAC Address List | 8K | |||
| Status Indicators | Power Indicator Light | One power light (green) | ||
| Optical Fiber Port Indicator | One fiber link indication light ( green), Green light keeps on when the fiber port is well connected; Blinking when transceiver data | |||
| Uplink Port | LED (Green): On, port is link on; Off, port is link down; | |||
| PoE Indicator | 1~24 PoE indicator light | |||
| PoE Network Port LED | 1~24 port ( green light on RJ45 jack) Keeps on when normally connected, Blinking when transceiver data | |||
| Protection Level | Surge Immunity | Level 3, executive standard:IEC61000-4-5 | ||
| Electrostatic Protection | 1a touch electric discharge: level 3 1a Air discharge: level 3 Executive standard:IEC61000-4-2 | |||
| Operating Environment | Working Temperature | -10℃～55℃ | ||
| Storage Temperature | -40℃-85℃ | |||
| Humidity(non-congeal) | 5~95% | |||
| Mechanical Attributes | Dimensions (L*W*H) | 440mm×260mm×44mm | ||
| Color | Black | |||
| Weight | 4.5kg | |||
| Reliability | Mean time between failures (MTBF) | ＞50000h | ||
| Environment | ||||
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|||
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|||
Product Overview
The AEO-824GP-1G1SFP is equipped with 24 10/100/1000BASE-T ports featuring 30-watt 802.3at Power over Ethernet Plus (PoE+) copper interfaces, 1 10/100/1000BASE-T ports RJ45 and 1 extra 1000BASE-X SFP slots with inner power system. With a total PoE power budget of up to 320 watts and non-blocking data switching performance, the AEO-824GP-1G1SFP fulfills the demand of sufficient PoE power for HD IP surveillance. It offers a rack-mountable, safe and reliable power solution for SMBs deploying Power over Ethernet networks.
The PoE in-line power following the IEEE 802.3at/af standard makes the AEO-824GP-1G1SFP able to deliver Gigabit speed data and up to 30 watts of power per port to 24 PoE compliant powered devices (PDs) with a combined power output budget of up to 320 watts. The AEO-824GP-1G1SFP provides more flexibility in power requirement for all kinds of PDs with affordable installation costs.
Product features
- 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper with POE function
- 1 1.25Gbps SFP interfaces
- 1-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper
- Complies with IEEE 802.3af/at Power over Ethernet end-span AEO
- Up to 24 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Each port supports 52V DC power to PoE powered device
- 320-watt PoE budget
- Auto detects powered device
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m in standard mode
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- 10 KB Jumbo frames support

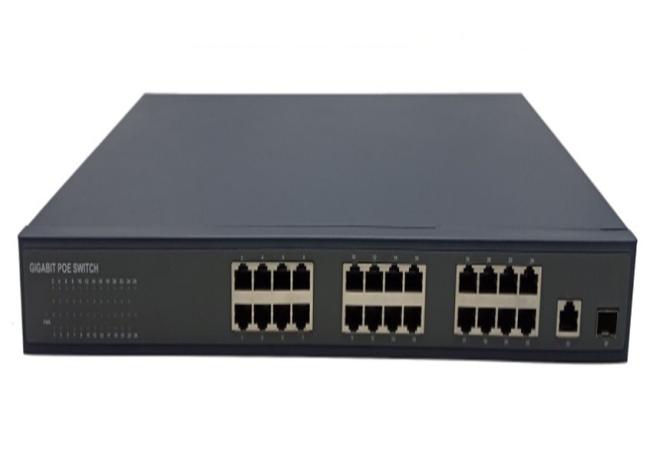

Product Picture
