Industrial POE Ethernet Fiber Switch Full Gigabit 1 SFP and 8 POE Ports
Industrial POE Ethernet Fiber Switch Full Gigabit 1 SFP and 8 POE Ports
Main Advantages of the SFP Fiber Switch:
1. IPC Extender: the distance can be 250m from the camera to the media converter
2. VLAN is to inhibit the network storm.
3. CBIT is to ensure the image more steady and clear
4. Transmission distance can be 20-100km
5. Single/multimode single/dual fiber
6. SC/ST/FC/LC is optional
Technical Parameters
| Backboard capacity | 20G | |
| Cache | 2M | |
| MAC address | 16K | |
| Max frame | 10Kbytes | |
| Ethernet port | 8 POE 10/100/1000Mbps rj45 ports | |
| Optic interface | SFP | |
| Ethernet port (10/100/1000Mbps) | 8 | |
| Optic interface (10/100/1000Mbps) | 1 | |
| Optical type | Single fiber single mode, 9/125um (multi-mode, 50um/125unu) | |
| Optical interface | FC, SC, LC,ST for option | |
| Transmission distance | Standard 20Km (single fiber single mode), it is customized for max. 100Km | |
| Input voltage | DC44V - 57V | |
| Working temperature | -40℃ ~ 85℃ | |
| Relative humidity | 5% ~ 90% (Non-Condensing) | |
| Shell Material | Iron | |
| Heat dissipation | Built-in passive heatsink cooling, Silent fanless design | |
| Surge protection (Ethernet) | Common mode ±4KV(10/700µS), Differential mode ±2KV(10/700µS) | |
| Surge protection (Power) | 2000A (8/20µS) | |
| POE | Standard Protocol | IEEE 802.3af/at |
| Pin Definition | V+,V+,V-,V- Corresponding to 1,2,3,6 | |
| The Output Power | IEEE802.3af:15.5W IEEE802.3at:25.5W | |
| Power consumption |
Full load≤5W |
|
| Mean Time Between Failure (MTBF) | 100,000 hours | |
| Dimension (mm) | 135x105x44mm | |
System Overview
Industrial grade media converter adopts industrial-grade design solution, through Electro-optical technique conversion, it can transfer data signal by different transmission media of twisted pair and fiber in new high-speed Ethernet network, multi-channel of HD 1080P network signals can be transferred without delay, it can meet the user’s requirements of long range transmission and high-speed transmission, the max high-speed transmission distance of HD network signals can reach 100 Km without repeater.
Product Features
Built-in United States Marvell industrial-grade network switching chips, performance is stable and reliable
Automatically compatible with IEEE802.3, IEEE802.3U, IEEE802.3X network protocols
Supports full duplex and half duplex transfer modes, and with auto-negotiation skills
Adaptive parallel line / crossover cable connection
With APC circuit, constant output optical power, large dynamic range.
Advanced adaptive technologies, without the need for on-site electrical or optical adjustment when using
Power port and network signals comply with Three-level lightning protection technology
Industry-standard design, IP30 shell protection
Desktop style and din rail style installation for option
Supports a variety of power supply wiring, power overload protection, anti-reverse polarity protection
POE solution (optional): compatible with standard protocol IEEE802.3af /at.

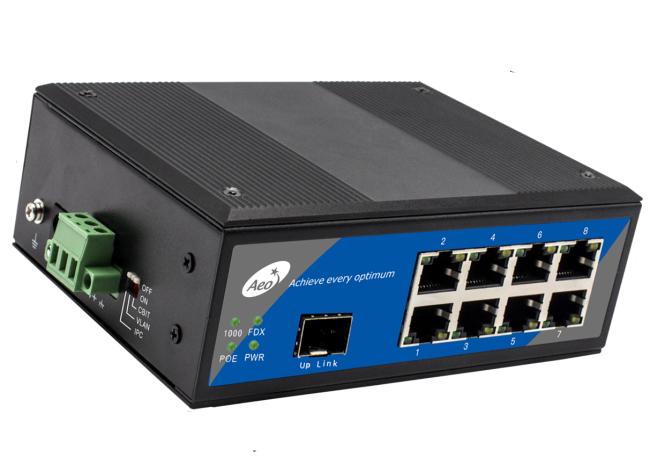

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
