5.8G Wireless Bridge Wan Port Wireless Outdoor CPE POE Power Supply
Price:
negotiation
MOQ:
1 piece
Delivery Time:
3-4 working days
Brand:
AEO
Product Description
5.8G Wireless Bridge Wan Port Wireless Outdoor CPE POE Power Supply
Technical Parameter
| Hardware | |
| Main Chipset | QCA9344 |
| RAM | DDR2 64MB (MAX DDR2 128MB) |
| SPI FLASH | 8MB (MAX 16MB) |
| Protocol | IEEE 802.11a.IEEE 802.11n.IEE 802.3.802.3u |
| RT Power |
802.11a 24dBm±2dBm. 802.11n 23dBm±2dBm. 802.3 15dBm±2dBm. 802.3u 15dBm±2dBm. |
| Reception Sensitivity |
802.11a: -70dBm@10% PER 802.11n HT20: -65dBm@10% PER 802.11n HT40: -62dBm@10% PER |
| Work Channel | 5GHz choose: 149, 153, 157, 161, 165 |
| Wireless Rate | Max 300Mbps |
| Work Frequency | 5.8GHz |
| Antenna | 1*20dbi directional antenna |
| Interface | 1*10/100M WAN port(Auto MDI/MDIX) 1*10/100M LAN port(Auto MDI/MDIX) |
| LED | Power,5.8G,WAN,LAN1 |
| Button | Reset |
| Max Power consumption | < 12W |
| Others | |
| Work Environments |
Operating Temperature:0℃ ~ 40℃； Operating Humidity:10%~90% non-condensing |
| Adapter | Nonstandard POE12V~24V/1A |
| Other accessories |
POE Power supply
|
Product Feature
- Compile with IEEE802.11n/b/g, IEEE802.3/802.3u
- Wireless TX rate: 802.11b 27dBm±2dBm,802.11g 25dBm±2dBm,802.11n 24dBm±2dBm
- 2 Ethernet port, support Au MDI/MDIX
- Support Reset function
- Wireless rate up to 300Mbps
- 5.8Ghz, it can effectively avoid 2.4GHz interference, transmission rate is faster, transmission distance is longer

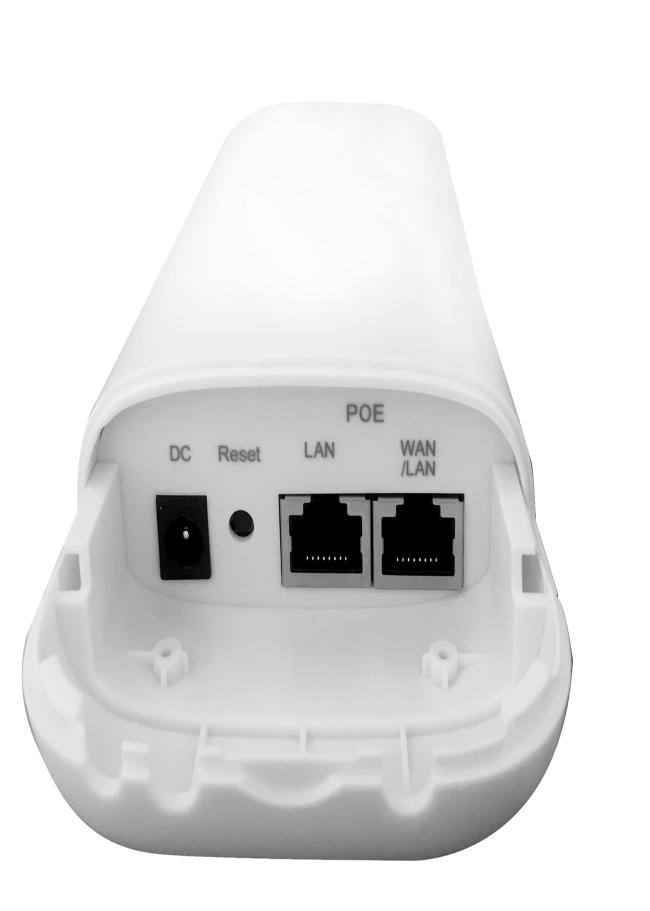

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
