16 Port POE Network Switch Full Gigabit Support VLAN with 2 Fiber Ports
16 Port POE Network Switch Full Gigabit Support VLAN with 2 Giggabit Fiber Ports
Technical Parameter
| Product Name | 18-Ports10/100/1000M PoE Switch |
| Connector Type | 16*10/100/1000M PoE Ports + 2*Gigabit SFP Uplink Ports |
| Network Protocols |
IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z |
|
PoE Parameters
|
PoE Standard: IEEE802.3af /IEEE802.3at |
|
Max each port: 15.4W (IEEE 802.3af) Max each port:30W (IEEE 802.3at) |
|
| PoE compatibility: IEEE 802.3af/at adaptive | |
| PoE port output: DC48-55V | |
| Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | |
| Network Media |
10BASE-T: Cat 5E UTP(≤250 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) |
| Optical |
MultiMode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km |
| PerformanceSpecification | Bandwidth: 52Gbps |
| MAC: 8K | |
| Packet Buffer Memory: 4M | |
| Packet Forwarding Rate: 38.7Mpps | |
| Power Supply | Power input: AC100-240V 50/60Hz, Output: 52V5.76A, Power Budget: 300W/400W |
| Working Environment |
Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 80℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) |
| Physical Parameter |
Product Dimension (L*W*H): 410mm*185mm*50mm Package Dimension (L*W*H): 468mm*274mm*81mm N.W: 2.1KG G.W: 2.7KG |
| Package Contents |
1.Ethernet Switch:1 unit 2.User Guide:1 unit 3.Warranty Card:1 unit 4.Power Cord:1unit 5.1U Rack Mount: 1 pair |
| MTBF | 100,000 hours |

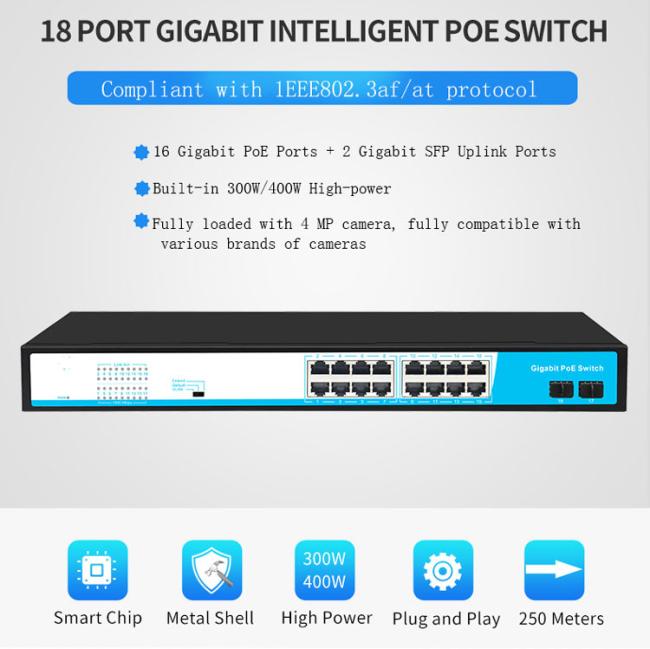

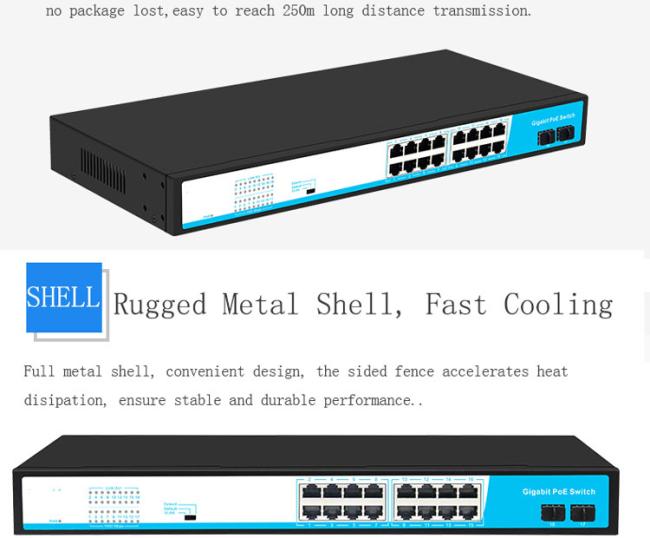

Product picture
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
