10 / 100 / 1000Mbps Din Rail Industrial SFP Network Switch with 2 Slots and 2 Ethernet Ports
10/100/1000Mbps Din Rail Industrial SFP Network Switch with 2 SFP Slots and 2 Ethernet Ports
Technical Parameter
| Product Name | 10/100/1000Mbps Industrial Din Rail Network Switch (2F+2TP) |
| Port |
2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage:DC 9-52V No-load power:5W Reverse connection: support |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark , commercial CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell Safety class: IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1year; 5 years repairing |
Product Introduction
10/100/1000Mbps Din Rail Industrial SFP Network Switch is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Product Features
- 2 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 2x 1000Mbps SFP fiber ports
- 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~85 ° c

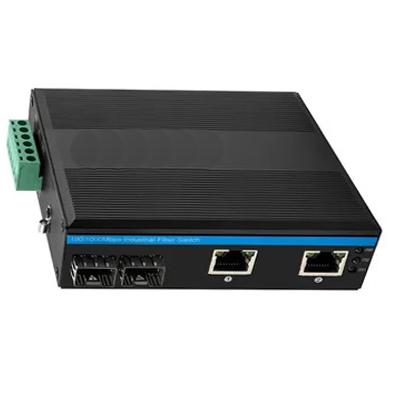

Product picture
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
