8 Port Ethernet Fiber Switch with 6 10/100TX Ethernet and 2 100FX Fiber Ports
8 Port Ethernet Fiber Switch with 6 10/100TX Ethernet and 2 100FX Fiber Ports
Technical Parameter
| Protocol Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Flow Control | IEEE802.3x flow control, back press flow control |
| Switching Performance | VLAN support and quantity:Support 16 VLAN IDs
Transmission Mode: Store and Forward Packet Buffer Size: 448K Backplane Bandwidth: 1.6Gbps MAC Table Size: 1K Delay Time: < 10μs |
| Ethernet Port | 10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation |
| Fiber Port | 100Base-FX fiber port |
| LED Indicator | Power indicator: PWR (green);
Optical port: FX (green); Network port indicator: yellow(100 or POE) Green (Link) |
| Power Supply | Input Voltage: DC10-58V/AC 100-240V 50-60HZ
Connector: 3P Phoenix terminal, dual power supply redundancy Full Load: <4W Protection Mechanism: overload protection, reverse connection protection, redundancy protection |
| Mechanical Structure | Shell: IP40 protection, aluminum alloy housing
Dimensi0.75KG Installation: DIN-Rail mounting, wall mounting |
| Operating Environment | Operating Temperature: -40-85°C
Storage Temperature: -40-85°C Ambient Relative Humidity: 5%-95% (non-condensing) |
| Industry Standards | IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us)
IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us) IEC 61000-4-3 Level 3 (10V/m) IEC 61000-4-4 Level 3 (1V/2V) IEC 61000-4-6 Level 3 (10V/m) IEC 61000-4-8 Level4 (30A/m) IEC 61000-4-11 Level3 (10V) EMI CLASS A IEC 61000-4-2 Level 4 (15KV/30KV) Free fall 0.5m |
Product Overview
A plug-and-play unmanaged industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
Features
♦ Support 2 100Base-FX fiber port and 6 10/100Base-T(X) Ethernet port.
♦ Support IEEE802.3, IEEE802.3u, IEEE802.3x.
♦ Plug-and-play, 10/100Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
♦ Industrial chip design, 15kV ESD protection, 8kV surge protection.
♦ DC10-58V redundancy power, reverse polarity protection.
♦ Industrial grade 4 design, -40-85°C operating temperature.
♦ IP40 rated aluminum alloy housing, DIN-Rail mounted.

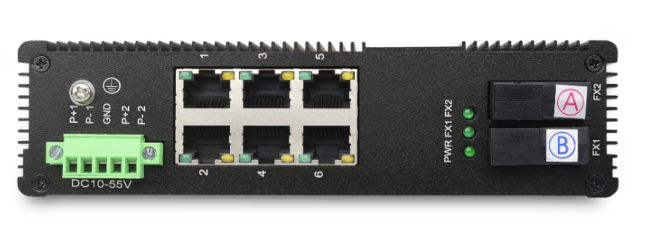

Product picture
