Poe Switch 8*10/100/1000mbps POE ports + UP-Link 2*1000m RJ45 port+2*1000m SFP
Poe Switch 8*10/100/1000mbps POE ports + UP-Link 2*1000m RJ45 port+2*1000m SFP
Technical Parameter
| Connector | 8*10/100/1000mbps POE port,2*1000mbps Uplink RJ45 port,2*1000mpbs SFP |
| Power Supply Type | Build In, 1/2+,3/6- |
| PoE Output Power | 15.4W/30W |
| DATA PIN | 1/2+ 3/6- ,4/5+ 7/8- |
| Network Medium | Cat5 (UTP) or more |
| Network Standards |
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
| PoE power | Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
| Processing types |
Store-and-forward Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
| Address database Table Size | 8K MAC address |
| Buffer memory | 48Kb embedded memory per unit |
| Backboard Bandwidth | 20Gpbs Full duplex |
| Network Latency | Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission |
| Input | 110V-240V |
| Overload current protection | Present |
| Casing | Metal |
| Installation | Wall mounting/ Desktop |
| LED Indicators |
System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
| Operating temperature | -10-55℃(32-104℉) |
| Storage temperature | -40-70℃(14-158℉) |
| Operating humidity | 90% maximum relative humidity, non-condensing |
| Storage humidity | 95% maximum relative humidity, non-condensing |
| ISO | Manufactured in ISO9001 facility |
| Safety | CE |
| Dimensions | 202*140*45mm (L*W*H) |
| Weight | N.W:0.9Kg G.W:1.1Kg |
Product Overview
PoE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto-sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable.

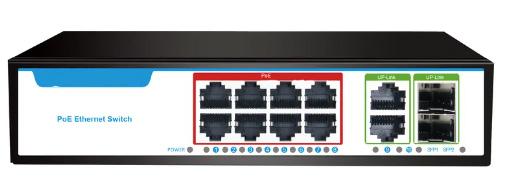

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
