Baito Standard Precision Mold Components KY30 Locating Block LM
| Place of Origin | Guangdong, China |
| Model Number | LM |
| Shaping Mode | Plastic Injection Mould |
| Product Name | Square interlocks |
| Type | Standard precision parts |
| Material | KY30 |
| Quality | 100% inspection before shipment |
| Delivery time | 5-10 workdays |
| Supply Ability | 120000 Piece/Pieces per Year |
| Packaging | Packed by sponge with plastic bag,wooden box or upon request |
| Port | SHENZHEN |
Lead time:
| Quantity(Pieces) | 1 - 50 | 51 - 200 | >200 |
| Est. Time(days) | 10 | 15 | To be negotiated |
♦ Product Description

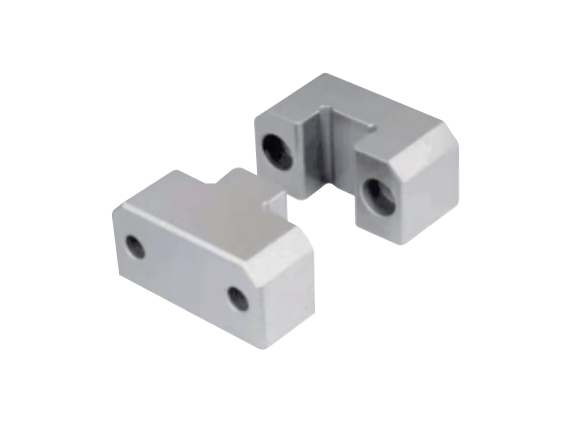

1. Square positioning block, also known as side lock, auxiliary device, precise positioning. Material: SKD11 or YK30, Hardness: 55-60HRC;
2. It is installed on the side surface of the mold, which is very convenient for loading and unloading, and the mounting holes on the template are easy to process.
3. The precise positioning or introduction mechanism of the mold can accurately locate the core when the movable mold and the fixed mold are closed, which can reduce the wear and damage of internal parts and cavities, and can more accurately control the quality of injection products and prolong the mold. life, improve overall production efficiency and create huge value.
4. Note: Due to the extremely small gap between the positioning blocks, in order to avoid collisions during mold clamping, it needs to be used in conjunction with precision guide posts, and the gap between the convex and concave blocks of the square positioning block is relatively small. Please pay attention to the processing and arrangement. It is used for the positioning of precision molds such as connectors and electronic components.

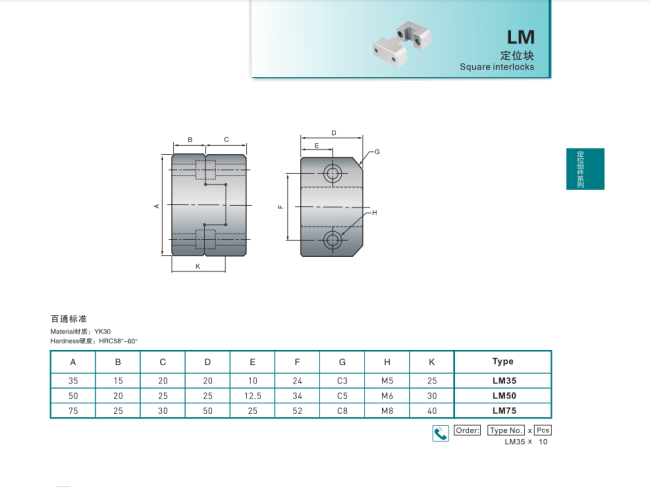

| Mold No | LM |
| Material | KY30 |
| Delivery time | 5-10 workdays |
| QC system | 100% inspection before shipment |
| MOQ | 1 PCS |
| Payment | 100% before shipment. |
| Shipping | By sea, By air, By DHL,UPS ,Fedex,TNT& etc. |
| Packaging | Single polybag, bubble bags, wooden case. or as requests |
|
Company Advantage: |
1) Competitive factory price with good quality. 2) Low MOQ (1pcs rapid prototype samples available). 3) Short lead time (3-30 working Days according your quantity). 4) Customized size and spec. 5) Advanced measurement equipment. 6) Quality Control: 100% inspection before shipment. 7) OEM / ODM . 8) Rich experience and good technology support( have more than 18 years experience in producing various kinds of precision parts). 9) Near Shenzhen and HK, convenient transportation |
|
Company Guarantee |
Our company with excellent quality and sincere service. We are the first manufacturer in China specializing in the development of mold parts. The main materials we use are imported from Japan. Our products achieve very high working accuracy, ultra-precision tolerance within 0.002mm. We provide stable quality, favorable price, punctual delivery and perfect service. |
♦ Products Show
Square guide bar baito oilless side locks
♦ FAQ
| 1. Could I have prices of your products? |
| Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours |
| 2. Can we print our logo/website/company name on products? |
| Yes, please advise the information of the logo. |
| 3. What's the lead time for regular order? |
| We have stocks about many standard mold components, about 10 workdays for regular order. |
| 4. Can I get a discount? |
| Yes, please contact us to get the best price. |
| 5. Do you inspect the finished products? |
| Yes, each step of production and finished products will be came out inspection by QC department before shipping. |
