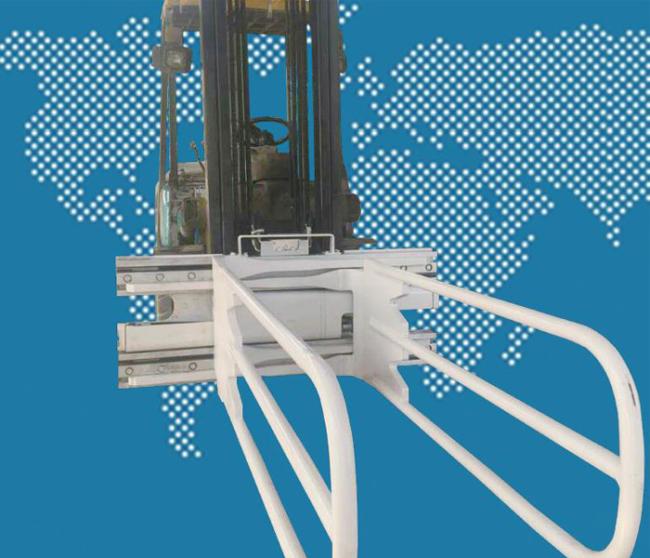

Clamp Truck Forklift Foam Rubber Clamp Attachment
Foam Rubber Clamps
Functions & Applications
Suitable for all kinds of paper bags, cotton bags, wool bags, chemical fiber bags and other soft bags material shipment. T-type sliding rod material high strength, good wear resistance, long service life. All steel structure, valve and cylinder rod open part of the bafle protection, excellent visual field operation.
Features
* Proven durable T-beam arm aluminum frame construction.
* Superior arm-slide bearing for extended service life.
* Excellent driver visibility.
* Regenerative hydraulic valving for optimal arm speed.
* Thin arm designed, easy to permit close stacking.
Options
* Custom opening ranges
* Custom pad size
* Various mounting classes available
* Load backrests
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range A (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Arm Thickness C (mm) |
Overall Height (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 500@500 | FMS20D-001A | II | 1260-2630 | 417 | 980 | 1041 | 47 | 665 | 221 | 465 | 127 | 310 |
| 600@500 | FMS20D-002A | II | 850-2230 | 417 | 980 | 1041 | 47 | 665 | 221 | 430 | 127 | 280 |
| 500@1000 | FMS20D-003A | II | 900-2230 | 400 | 1800 | 1041 | 50 | 665 | 221 | 475 | 167 | 280 |
| 200@1000 | FMS20D-004A | II | 1750-3150 | 400 | 1800 | 1900 | 50 | 665 | 221 | 650 | 167 | 280 |
| 500@1000 | FMS20D-005A | II | 1000-2400 | 400 | 1800 | 1041 | 50 | 665 | 221 | 490 | 167 | 280 |
| 1000@500 | FMS20D-006A | II | 900-2300 | 600 | 1500 | 1041 | 50 | 665 | 221 | 475 | 167 | 280 |
| 2200@500 | FMS30D-007B | III | 790-2600 | 600 | 2500 | 1600 | 60 | 730 | 250 | 800 | 200 | 280 |
| 2200@500 | FMS30D-008B | III | 790-2600 | 400 | 1800 | 1600 | 60 | 730 | 250 | 680 | 200 | 300 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Arm thickness “C” is the actual requested operation space.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Farms, Construction works.
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
