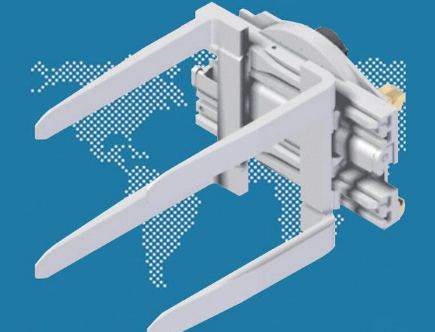

Turnaload Forklift Clamp Attachment 1900mm Opening
Forklift connecting turntable with 50x125x1200mm forklift fork
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range (mm) |
Fork Size (mm) |
Frame Width D(mm) |
Fork Spacing (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1600@600 | TAL20D-001A | II | 580-1860 | 50x125x1000 | 1040 | 450 | 265 | 720 | 300 | 330 |
| 1600@600 | TAL20D-002A | II | 480-1720 | 45x125x1070 | 940 | 700 | 265 | 680 | 295 | 325 |
| 1600@600 | TAL20D-003A | II | 620-1900 | 50x125x1200 | 940 | 560 | 265 | 750 | 300 | 330 |
Functions & Applications
It can accommodate 360 degree continuous rotation of goods, and can also be used to transfer goods from high-grade production pallets to cheaper transportation pallets, saving pallet cost. It is suitable for efficient handling and stacking in tobacco, papermaking, chemical fiber, workshop, port and other industries.
Features
* Durable T-beam arm aluminum frame structure.
* Excellent sliding arm bearing to prolong service life.
* Continuous 360 degree rotation, position locking function at any angle.
Options
* Fork sizes
* Various mounting classes available
* Custom opening ranges
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The fork size can be customized according to user requirements.
Applicable Industries
Manufacturing plant, chemical fiber, workshop, port industry
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
