Double 55 Gallon Drum Clamp Forklift Attachment Forklift Barrel Clamp

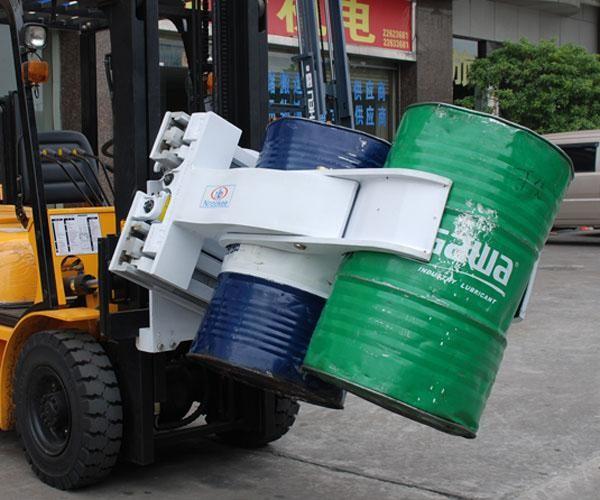

2-Drum Revolving drum clamp for forklift
Functions & Applications
Drum clamps can make the forklift carry two or four oil drums at the same time, to ensure that it is safe and reliable clamping in the process of transportation, significantly improve handling efficiency.
Features
* Proven durable T-beam arm aluminum frame construction.
* Superior arm-slide bearing for extended service life.
* Quick installation, easy maintenance, excellent visibility.
Options
* Various mounting classes available
* Custom opening ranges
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Frame Width C (mm) |
Overall Height D (mm) |
Hook Spread E (mm) |
Vertical Center of Gravity CGV (mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 2-Drum Revolving | |||||||||
| 1900@500 | DTR20D-004A | 520-1750 | 940 | 775 | 815 | 410 | 522 | 241 | 140 |
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| DTR20D | 20 | 40 | 60 | 35 | 160 |
| DTR30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| DTR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| DTR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Options:
* Heightening and large clamp arm.
* Left and right clip arm independent movement type.
Applicable Industries
Widely used in the petroleum and chemical industry and in other applications that require the handling of standard drums.
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
