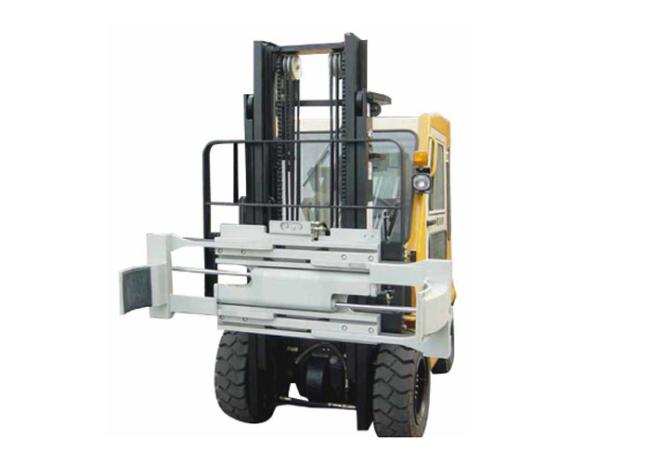

4-Drum sideshifting drum clamp for forklift
Functions & Applications
Specifically designed for all tonnages of forklifts with international standard.
With the forklift attachments, forklift will play its role to the best.
Widely used in the petroleum and chemical industry and in other applications that require the handling of standard drums.
Features
* Easy to assemble and dissemble.
* High intensity Tslide bar increased longer service life of slide bearing.
* Reasonable drum handling position, extend the service life of drums. Replaceable rubber faced arm pads.
* Coordinate with forklifts wonderfully.
Options
* Various mounting classes available
* Custom opening ranges
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Frame Width C (mm) |
Overall Height D (mm) |
Hook Spread E (mm) |
Vertical Center of Gravity CGV (mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 4-Drum Sideshifting | |||||||||
| 1400@500 | DTR20D-004A | 335-1480 | 940 | 645 | 890 | 220 | 385 | 147 | 290 |
| 1400@500 | DFS15D-006A | 420-1550 | 865 | 620 | 760 | 210 | 370 | 142 | 312 |
| 1900@500 | DFS20D-007A | 460-1690 | 940 | 645 | 890 | 220 | 395 | 147 | 295 |
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| DTS20D | 15 | 25 | 25 | 35 | 160 |
| DTS30D | 15 | 40 | 40 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| DTR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| DTR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Options:
* Heightening and large clamp arm.
* Left and right clip arm independent movement type.
Applicable Industries
Construction works, Energy & Mining and in other applications that require the handling of standard drums.
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
