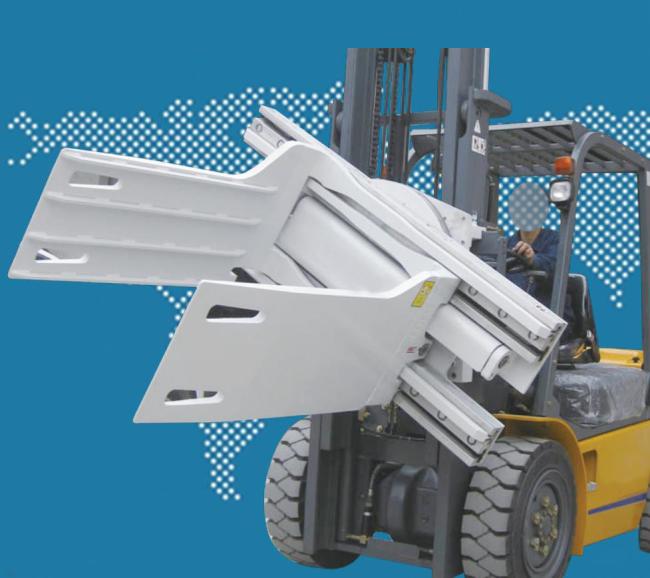

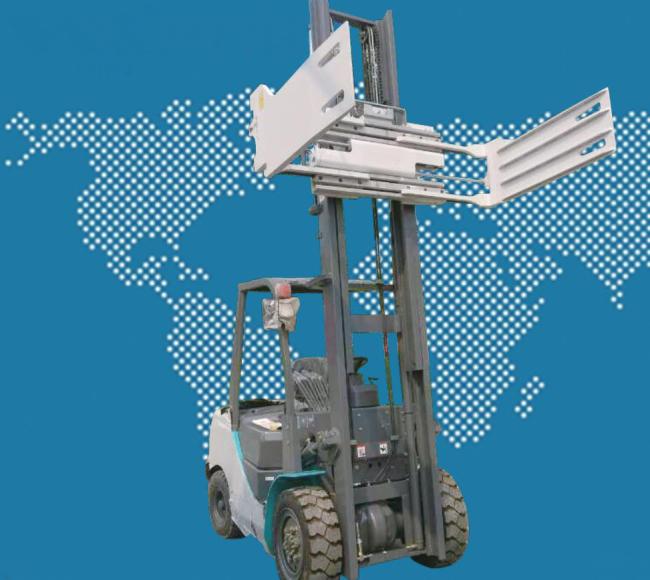

Hydraulic Round Hay Bale Clamp 2.5Ton 3Ton Forklift Bale Clamps For Sale
2.5Ton 3Ton Forklift Attachment Bale Clamp
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Arm Height A (mm) |
Arm Length B (mm) |
Frame Width C (mm) |
Arm Thickness D (mm) |
Overall Height E (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 2700@500 | BCS30D-008A | 550-1900 | 460 | 991 | 1015 | 75 | 730 | 255 | 556 | 142 | 315 |
| 2700@500 | BCS30D-008B | 550-1900 | 460 | 991 | 1015 | 75 | 730 | 255 | 579 | 150 | 312 |
| 2700@500 | BCS30D-009A | 545-1890 | 460 | 1194 | 1015 | 75 | 730 | 255 | 624 | 142 | 396 |
| 2700@500 | BCS30D-009B | 545-1890 | 460 | 1194 | 1015 | 75 | 730 | 255 | 640 | 150 | 391 |
| 2700@500 | BCS30D-010A | 550-1900 | 460 | 915 | 1015 | 75 | 730 | 255 | 538 | 142 | 307 |
| 2700@500 | BCS30D-010B | 550-1900 | 460 | 915 | 1015 | 75 | 730 | 255 | 538 | 150 | 305 |
Functions & Applications
Bale clamps enable bale clamp products be handled safely, efficiently, and ecnomicaly without any damage. With different lift capacity, this Hydraulic attachment is ideal for the recycling industry and for bale products applications.
Forklift bale clamps can efficiently and economically handle almost any type of bale products, including cotton, wool, synthetic fibers, textile bales, corrugated paper, newsprint, rags, hay, metal and other waste bales.
Options
* Custom opening ranges
* Custom arm sizes
* Various mounting classes available
* Load backrests
* Bolt bale arm
Remark
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Open arm range is the space between two arms tip.
4. Arm thickness “D” is the actual requested operation space.
5. Rotating bale clamps choose able.
Applicable Industries
Wool, synthetic, Manufacturing Plant,Machinery Repair Shops, Farms
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
