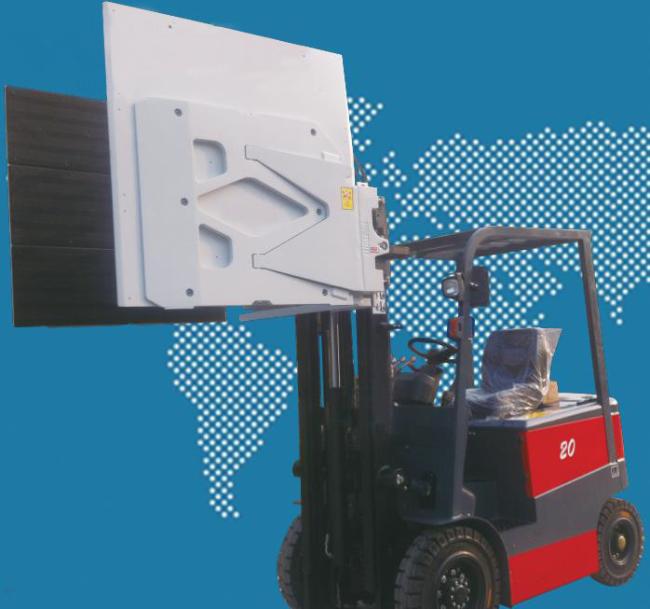

Appliance Box Clamp Forklift Attachment Forklift Carton Clamps
Customize various sizes of forklift clamp attachments carton clamps
Product Description
CCS20D-006A Opening Range 560-1930mm, Arm Height 1220mm, Arm Length 1240mm, Vertical Center of Gravity 315mm
CCS20D-007A Opening Range 560-1930mm, Arm Height 1525mm, Arm Length 1370mm, Vertical Center of Gravity 380mm
CCS30D-008B Opening Range 535-1850mm, Arm Height 1525mm, Arm Length 1015mm, Vertical Center of Gravity 450mm
CCS30D-009B Opening Range 535-1850mm, Arm Height 1525mm, Arm Length 1015mm, Vertical Center of Gravity 450mm
Options
* Custom opening ranges
* Various mounting classes available
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range (mm) |
Arm Height A(mm) |
Arm Length B (mm) |
Frame Width D (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1400@710 | CCS20D-006A | II | 560-1930 | 1220 | 1240 | 1040 | 315 | 770 | 127 | 483 |
| 1450@685 | CCS20D-007A | II | 560-1930 | 1525 | 1370 | 1040 | 380 | 824 | 127 | 485 |
| 2300@510 | CCS30D-008B | III | 535-1850 | 1525 | 1015 | 1015 | 450 | 899 | 152 | 485 |
| 2300@535 | CCS30D-009B | III | 535-1850 | 1525 | 1015 | 1015 | 450 | 906 | 152 | 485 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4.All the carton clamps are equipped with four POTS pressure regulating valves
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| CCS20D | 15 | 25 | 25 | 35 | 160 |
| CCS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Four-position pressure regulator valve.
* Pad height extension.
* Heightening load backrest.
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Food & Beverage Shops, Printing
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
