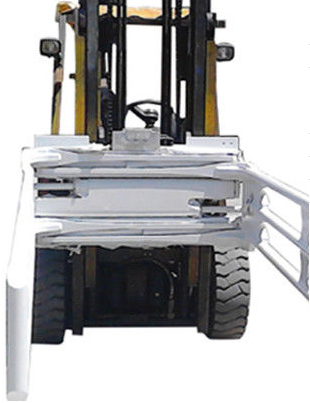

Foam Clamp Truck Attachment For Forklift 200kg 500kg 600kg
Foam Rubber Clamps
Functions & Applications
It is applicable to the shipment of various soft bag materials such as paper bags, cotton bags, wool bags and chemical fiber bags. T-shaped sliding rod material has high strength, good wear resistance and long service life. All steel structure, bafle protection for valve and cylinder rod opening, excellent field of view and operation.
Features
* Durable T-beam arm aluminum frame structure.
* Excellent sliding arm bearing to prolong service life.
* Excellent driving visibility.
* The regenerative hydraulic valve can achieve the best arm speed.
* Thin arm design for close stacking.
Options
* User defined opening range
* Custom pad size
* Various installation categories are available
* Load backrest
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range A (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Arm Thickness C (mm) |
Overall Height (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 500@500 | FMS20D-001A | II | 1260-2630 | 417 | 980 | 1041 | 47 | 665 | 221 | 465 | 127 | 310 |
| 600@500 | FMS20D-002A | II | 850-2230 | 417 | 980 | 1041 | 47 | 665 | 221 | 430 | 127 | 280 |
| 500@1000 | FMS20D-003A | II | 900-2230 | 400 | 1800 | 1041 | 50 | 665 | 221 | 475 | 167 | 280 |
| 200@1000 | FMS20D-004A | II | 1750-3150 | 400 | 1800 | 1900 | 50 | 665 | 221 | 650 | 167 | 280 |
| 500@1000 | FMS20D-005A | II | 1000-2400 | 400 | 1800 | 1041 | 50 | 665 | 221 | 490 | 167 | 280 |
| 1000@500 | FMS20D-006A | II | 900-2300 | 600 | 1500 | 1041 | 50 | 665 | 221 | 475 | 167 | 280 |
| 2200@500 | FMS30D-007B | III | 790-2600 | 600 | 2500 | 1600 | 60 | 730 | 250 | 800 | 200 | 280 |
| 2200@500 | FMS30D-008B | III | 790-2600 | 400 | 1800 | 1600 | 60 | 730 | 250 | 680 | 200 | 300 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
Other sizes are available upon request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right gripper arms are independent joints.
Applicable Industries
Manufacturing plants, food and beverage factories, farms, construction projects.
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
