paper bags Carton Clamp Attachment 241mm Thickness

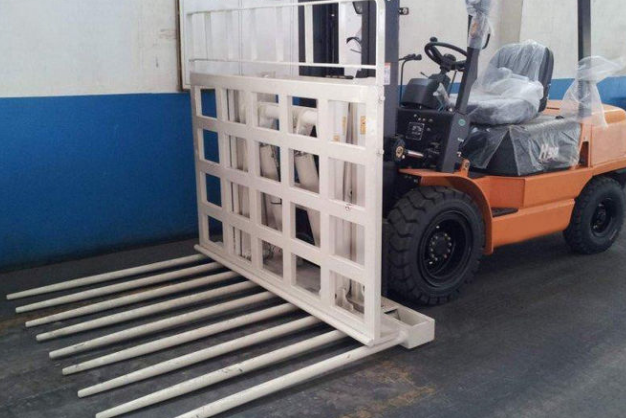

Forklift Attachment with Bag Load Push
Functions & Applications
The utility model is used for a sliding plate for transporting paper bags, cartons or bottled goods, does not need the transportation and stacking of pallets, and realizes high efficiency and low cost.
Features
* High strength steel structure is designed to meet users' efficient and continuous operation.
* Meet the working requirements under different working conditions.
* Reasonable design and good vision.
Options
* Extended push plate
* Install different levels
* Special payment
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Width of Faceplate (mm) |
Height of Faceplate (mm) |
Sideshift (mm) |
Stroke (mm) |
Round Diamensions (mm) |
Number of Round Bars |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1600@600 | PLB20D-001A | 1000 | 1000 | No | 1180 | φ55*1200 | 6 | 550 | 241 | 329 |
| 2500@600 | PLB30D-002B | 1000 | 1000 | No | 1180 | φ55*1200 | 6 | 590 | 241 | 329 |
| 2500@600 | PLS30D-003B | 1000 | 1000 | ±100 | 1280 | φ55*1300 | 6 | 650 | 241 | 329 |
| 2500@600 | PLB30D-004B | 1100 | 1100 | No | 1180 | φ55*1200 | 6 | 620 | 241 | 329 |
| 2500@600 | PLS30D-005B | 1100 | 1100 | ±100 | 1280 | φ55*1300 | 6 | 680 | 241 | 329 |
| 2500@600 | PLB30D-006B | 1200 | 1200 | No | 1180 | φ55*1200 | 6 | 650 | 241 | 329 |
| 2500@600 | PLS30D-007B | 1200 | 1200 | ±100 | 1380 | φ55*1400 | 6 | 710 | 241 | 329 |
Page:
1. Obtain the actual production capacity of forklift and forklift accessories manufacturers.
Additional oil pipes required for
2. 1/2 sets of forklifts.
Other sizes can be customized as required.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| PLB20D | 20 | 40 | 60 | 35 | 160 |
| PLB30D | 20 | 40 | 60 | 35 | 160 |
option:
* Fork / round stick.
* Extend the push plate.
Applicable Industries
Factories, hotels, clothing stores, building materials, machinery repair shops.
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
