1900kg Plastic Hydraulic Drum Grabber Forklift Attachment
1400KG forklift double cylinder side moving fixture
Functions & Applications
The utility model is widely used in petroleum, chemical industry and other applications that need to process standard barrels.
Features
* Durable aluminum guide block structure.
* High strength sliding rod improves the service life of sliding bearing.
* Reasonable roller movement position to prolong the service life of the roller. Replace the rubber pad arm.
* Quick installation, convenient maintenance and excellent display effect.
Options
* Install different available categories
* Initial appropriation
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Frame Width C (mm) |
Overall Height D (mm) |
Hook Spread E (mm) |
Vertical Center of Gravity CGV (mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 2-Drum Sideshifting | |||||||||
| 1400@500 | DTS15D-001A | 395-1545 | 940 | 645 | 890 | 210 | 285 | 145 | 100 |
| 1400@500 | DTS15D-002A | 485-1600 | 865 | 620 | 760 | 210 | 270 | 140 | 107 |
| 1900@500 | DTS15D-002A | 520-1750 | 940 | 620 | 760 | 220 | 295 | 145 | 104 |
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| DTS20D | 15 | 25 | 25 | 35 | 160 |
| DTS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Add weapon tongs.
* Left and right arm clamping independent movement.
Applicable Industries
It is widely used in petroleum and chemical industries and other applications that need to deal with standard barrels.

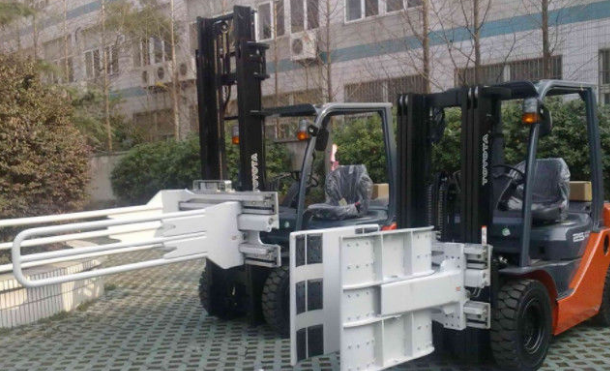

Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
