55 Gallon Forklift Drum Clamp Grabber Fork Extensions
4-Forklift drum side moving drum clamp
Functions & Applications
Specially designed for all tonnage forklifts that meet international standards.
Using forklift accessories, forklift will play its best role.
It is widely used in petroleum and chemical industries and other applications that need to deal with standard barrels.
Features
* Easy to assemble and disassemble.
* High strength sliding rod improves the service life of sliding bearing.
* Reasonable drum handling position to prolong the service life of the drum. Replaceable rubber faced arm pad.
* It works very well with the forklift.
Options
* Raise and tong arm.
* Left and right gripper arms are independent joints.
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Frame Width C (mm) |
Overall Height D (mm) |
Hook Spread E (mm) |
Vertical Center of Gravity CGV (mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 4-Drum Sideshifting | |||||||||
| 1400@500 | DTR20D-004A | 335-1480 | 940 | 645 | 890 | 220 | 385 | 147 | 290 |
| 1400@500 | DFS15D-006A | 420-1550 | 865 | 620 | 760 | 210 | 370 | 142 | 312 |
| 1900@500 | DFS20D-007A | 460-1690 | 940 | 645 | 890 | 220 | 395 | 147 | 295 |
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| DTS20D | 15 | 25 | 25 | 35 | 160 |
| DTS30D | 15 | 40 | 40 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| DTR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| DTR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Options:
* Heightening and large clamp arm.
* Left and right clip arm independent movement type.
Applicable Industries
Construction Engineering, energy and mining and other applications requiring the handling of standard drums.
Can be customized according to size
Customized solutions:

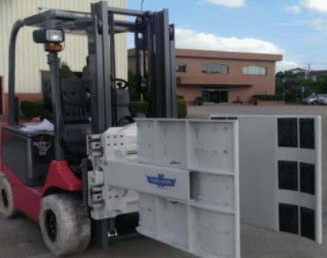

1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
