1.9t Forklift Drum Clamp Lifter Electric Forklift Parts
1400KG 1900kg drum clamp for forklift with different lifting capacity
Functions & Applications

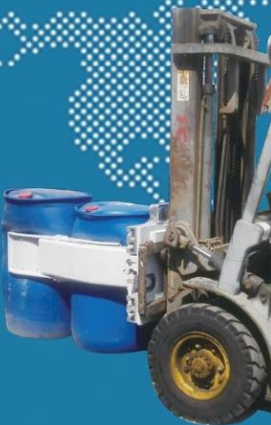

The drum gripper can enable the forklift to carry two or four oil drums at the same time, ensure its safe and reliable clamping in the process of transportation, and significantly improve the handling efficiency.
It is widely used in petroleum and chemical industries and other applications that need to deal with standard barrels.
Features

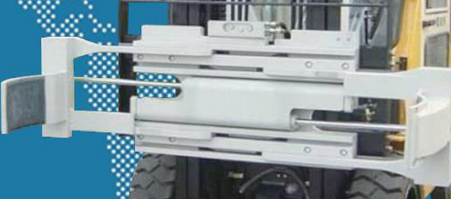

* Durable T-beam arm aluminum frame structure.
* Excellent sliding arm bearing to prolong service life.
* The regenerative hydraulic valve can achieve the best arm speed.
* Excellent driving visibility.
* The rubber pad on the clamping arm can be easily replaced. It is economical and practical.
Options
* Various installation categories are available
* User defined range
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Frame Width C (mm) |
Overall Height D (mm) |
Hook Spread E (mm) |
Vertical Center of Gravity CGV (mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 2-Drum Sideshifting | |||||||||
| 1400@500 | DTS15D-001A | 395-1545 | 940 | 645 | 890 | 210 | 285 | 145 | 100 |
| 1400@500 | DTS15D-002A | 485-1600 | 865 | 620 | 760 | 210 | 270 | 140 | 107 |
| 1900@500 | DTS15D-002A | 520-1750 | 940 | 620 | 760 | 220 | 295 | 145 | 104 |
| 2-Drum Revolving | |||||||||
| 1900@500 | DTR20D-004A | 520-1750 | 940 | 775 | 815 | 410 | 522 | 241 | 140 |
| 4-Drum Sideshifting | |||||||||
| 1400@500 | DTR20D-004A | 335-1480 | 940 | 645 | 890 | 220 | 385 | 147 | 290 |
| 1400@500 | DFS15D-006A | 420-1550 | 865 | 620 | 760 | 210 | 370 | 142 | 312 |
| 1900@500 | DFS20D-007A | 460-1690 | 940 | 645 | 890 | 220 | 395 | 147 | 295 |
| 4-Drum Revolving | |||||||||
| 1900@500 | DFR20D-008A | 460-1690 | 940 | 775 | 815 | 335 | 613 | 239 | 277 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range refers to the arc middle spacing of the roller clamping pad.
4. Double roller clamping type can carry one or two rollers.
5. Four drum clamping type can carry one, two or four drums.
6. It is suitable for handling 55 gallons (US system: 205 liters) of standard oil barrels.
Other sizes are available upon request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| Side shift | |||||
| DTS20D | 15 | 25 | 25 | 35 | 160 |
| DTS30D | 15 | 40 | 40 | 35 | 160 |
| Revolving | |||||
| DTR20D | 20 | 40 | 60 | 35 | 160 |
| DTR30D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| DTR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| DTR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Options:
* Raise and tong arm.
* Left and right gripper arms are independent joints.
Applicable Industries
Construction Engineering, energy and mining and other applications requiring the handling of standard drums.
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
