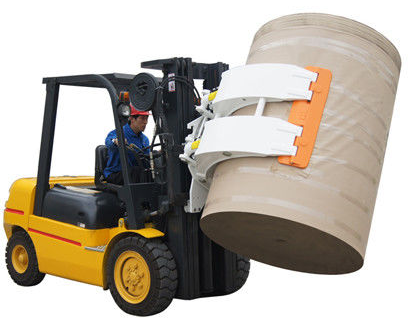

Fixed Short Arm Rotating Paper Roll Clamp 360° Forklift Attachment

Research on B-type high precision paper roll clamp 3400kg 3500kg

  Functions & Applications

In modern logistics, paper roll clamp, as an advanced transportation equipment, plays an important role in the factory. It is widely used in the loading, unloading and transportation of circular objects such as cartons and printing. Wait.

  Features

*   The utility model has the advantages of reasonable design, compact structure, high efficiency, good field of vision and convenient operation. Stable operation and long service life.

*  Bidirectional 360 degree continuous steering, self-locking function at any angle position.

*  The contact surface of the splint has fine and reasonable relief to provide reasonable clamping friction during operation.

  Options

*  Initial appropriation

*  Determine the position of the short arm or the short arm

*  Long arm separation

*  Special pillow

  Parameter

2.  "A" type fixed structure frame and fixed arm type, twp set additional oil circuit required by forklift. 1. Obtain the actual capacity of the forklift and accessories from the forklift manufacturer. remarks:

"B" type fixed structure frame and adjustable arm type. Two sets of additional oil circuits are required on the forklift.

"C" rotating structure frame and adjustable arm type. Two sets of additional circuits and solenoid valves are required on forklift.

3.  When the stacking operation is higher than 6800mm, use the "0" installation angle.

4.  Provide non-standard splints as required.

  Applicable Industries

Hotels, clothing stores, building materials stores, construction engineering, energy and mining, newspaper publishers and converters

  Can be customized according to size

Customized solutions:

Carton Clamp

Block Clamp

Bale Clamp

Roll Clamp

......

all kinds of attachment
