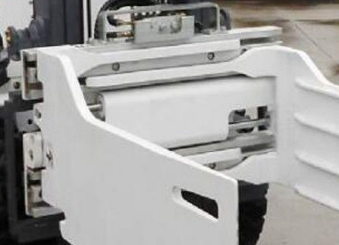

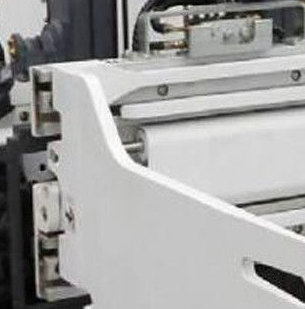

Round Hay Bale Clamp Lifter Forklift Bale Clamp 730mm Overall Height
2.5t 3T forklift accessory clamp
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Arm Height A (mm) |
Arm Length B (mm) |
Frame Width C (mm) |
Arm Thickness D (mm) |
Overall Height E (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 2700@500 | BCS30D-008A | 550-1900 | 460 | 991 | 1015 | 75 | 730 | 255 | 556 | 142 | 315 |
| 2700@500 | BCS30D-008B | 550-1900 | 460 | 991 | 1015 | 75 | 730 | 255 | 579 | 150 | 312 |
| 2700@500 | BCS30D-009A | 545-1890 | 460 | 1194 | 1015 | 75 | 730 | 255 | 624 | 142 | 396 |
| 2700@500 | BCS30D-009B | 545-1890 | 460 | 1194 | 1015 | 75 | 730 | 255 | 640 | 150 | 391 |
| 2700@500 | BCS30D-010A | 550-1900 | 460 | 915 | 1015 | 75 | 730 | 255 | 538 | 142 | 307 |
| 2700@500 | BCS30D-010B | 550-1900 | 460 | 915 | 1015 | 75 | 730 | 255 | 538 | 150 | 305 |
Remark
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The open arm range is the space between the two arm tips.
4. The arm thickness "d" is the actual required operating space.
5. Rotate the bale clamp optionally.
Functions & Applications
Bale clamp enables safe, efficient and economical handling of bale clamp products without any damage. The hydraulic accessories have different lifting capacities and are very suitable for recycling industry and bundle product applications.
Forklift bales can efficiently and economically handle almost any type of bales, including cotton, wool, synthetic fiber, textile bales, corrugated paper, newsprint, rags, hay, metal and other waste bales.
Options
* User defined opening range
* Custom arm size
* Various installation categories are available
* Load backrest
* Bolt bale arm
Applicable Industries
Wool, synthetic fiber, manufacturing plant, machinery repair shop, farm
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
