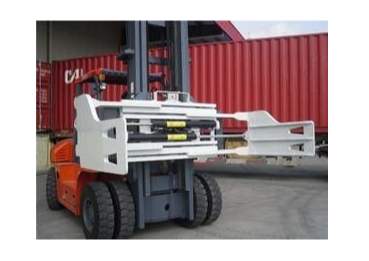

3000 LBS 4000 LBS Forklift Truck Bale Clamp Grab
High quality forklift accessory clamps with different capacities
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Arm Height A (mm) |
Arm Length B (mm) |
Frame Width C (mm) |
Arm Thickness D (mm) |
Overall Height E (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 2200@500 | BCS30D-011B | 490-2300 | 460 | 990 | 1600 | 75 | 730 | 255 | 710 | 150 | 240 |
| 2200@500 | BCS30D-012B | 490-2300 | 460 | 1195 | 1600 | 75 | 730 | 255 | 730 | 150 | 240 |
Remark
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The open arm range is the space between the two arm tips.
4. The arm thickness "d" is the actual required operating space.
5. Rotate the bale clamp optionally.
Functions & Applications
The bundle clamp has the characteristics of high efficiency, low price and convenient maintenance, and has a very wide range of application scenarios. The binding clamp is mainly used in the following fields: transportation, aquatic products, metal industry, wood industry, animal husbandry, warehousing, etc.
Options
* User defined range
* Custom arm size
* Various installation categories are available
* Load backrest
* Bolzenbalen Arm
Applicable Industries
Building materials shop, machinery repair shop, metal industry, timber industry
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
