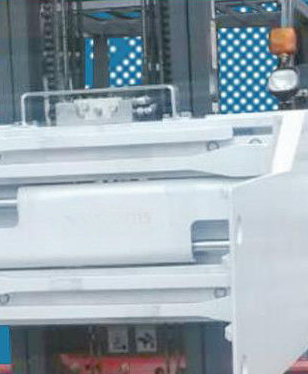

2200kg 2500kg Forklift Bale Grab Attachments 665mm Height
1700kg 2500kg Forklift attachment connecting clamp
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range O (mm) |
Arm Height A (mm) |
Arm Length B (mm) |
Frame Width C (mm) |
Arm Thickness D (mm) |
Overall Height E (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1700@500 | BCS20A-103A | 455-1735 | 420 | 685 | 1040 | 82 | 665 | 220 | 310 | 127 | 203 |
| 1700@500 | BCS20A-104A | 455-1735 | 420 | 785 | 1040 | 82 | 665 | 220 | 337 | 127 | 239 |
| 1700@500 | BCS20A-105A | 450-1730 | 420 | 915 | 1040 | 82 | 665 | 220 | 378 | 127 | 307 |
| 1700@500 | BCS20A-106A | 450-1730 | 420 | 991 | 1040 | 82 | 665 | 220 | 382 | 127 | 315 |
| 1700@500 | BCS20A-107A | 450-1730 | 420 | 1194 | 1040 | 82 | 665 | 220 | 425 | 127 | 401 |
| 2500@500 | BCS30A-108A | 550-1900 | 480 | 991 | 1015 | 98 | 730 | 255 | 516 | 142 | 315 |
| 2500@500 | BCS30A-108B | 550-1900 | 480 | 991 | 1015 | 98 | 730 | 255 | 519 | 150 | 312 |
| 2500@500 | BCS30A-109A | 545-1890 | 480 | 1194 | 1015 | 98 | 730 | 255 | 574 | 142 | 396 |
| 2500@500 | BCS30A-109B | 545-1890 | 480 | 1194 | 1015 | 98 | 730 | 255 | 590 | 150 | 391 |
| 2500@500 | BCS30A-110A | 550-1900 | 480 | 915 | 1015 | 98 | 730 | 255 | 498 | 142 | 307 |
| 2500@500 | BCS30A-110B | 550-1900 | 480 | 915 | 1015 | 98 | 730 | 255 | 501 | 150 | 305 |
| 2200@500 | BCS30A-111B | 490-2300 | 480 | 990 | 1600 | 98 | 730 | 255 | 660 | 150 | 240 |
| 2200@500 | BCS30A-112B | 490-2300 | 480 | 1195 | 1600 | 98 | 730 | 255 | 680 | 150 | 240 |
Remark
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Open arm range is the space between two arms tip.
4. Arm thickness “D” is the actual requested operation space.
5. Rotating bale clamps choose able.
Functions & Applications
Forklift packaging clip can efficiently and economically handle various packaging products such as cotton, waste paper, corrugated paper, chemical fiber, metal, industrial waste and so on. It is suitable for papermaking, textile, chemical fiber, waste paper recycling, port and other industries.
Options
* Custom opening ranges
* Custom arm sizes
* Various mounting classes available
* Load backrests
* Bolt bale arm
Applicable Industries
Building materials store, farm, retail, construction engineering, wool, synthetic fiber, textile bag
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
