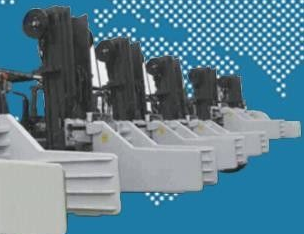

4t 5t Forklift Hay Bale Clamp Attachment
4000kg 5000kg Forklift accessories pulp bale clamp
Functions & Applications
It can efficiently and economically carry different types of soft bag products and stack them without pallets.
It is mainly used in the following areas: transport, water products, metal industry, cotton, wool, textile fibres, corrugated board, rags, storage etc.
Options
* Serrated rail
* Left and right arms independent joints
* 180 Speed-stop mechanism
Parameter
Single arm control available
| Capacity@ Load Center (Kg@mm) |
Model No. | Opening Range (mm) |
Frame Width A(mm) |
Arm Height D (mm) |
Arm Length B (mm) |
Arm Thickness C (mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 4000@600 | PBS40D-001C | 490-2115 | 1370 | 460 | 1200 | 85 | 1000 | 178 | 390 |
| 4000@600 | PBS40D-002C | 490-2115 | 1370 | 460 | 1400 | 90 | 1060 | 178 | 395 |
| 4000@600 | PBS40D-003C | 545-2550 | 1690 | 460 | 1200 | 85 | 1120 | 178 | 390 |
| 4000@600 | PBS40D-004C | 545-2550 | 1690 | 460 | 1400 | 90 | 1180 | 178 | 395 |
| 5000@600 | PBS50D-001C | 650-2370 | 1475 | 460 | 1200 | 85 | 1205 | 190 | 242 |
| 5000@600 | PBS50D-002C | 650-2370 | 1475 | 460 | 1400 | 90 | 1285 | 190 | 242 |
| 5000@600 | PBS50D-003C | 520-2240 | 1575 | 460 | 1200 | 85 | 1315 | 190 | 242 |
| 5000@600 | PBS50D-004C | 520-2240 | 1575 | 460 | 1400 | 90 | 1395 | 190 | 242 |
Remark
1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The open arm is the distance between the two arms tips.
4. The "d" arm thickness is the actual working space required.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| Side shift | |||||
| BCS20D | 15 | 25 | 25 | 35 | 160 |
| BCS30D | 15 | 40 | 40 | 35 | 160 |
| PBS40D | 38 | 53 | 64 | 35 | 160 |
| PBS50D | 38 | 57 | 91 | 35 | 160 |
| Rotary | |||||
| BCR20D | 20 | 40 | 60 | 35 | 160 |
| BCR30D | 20 | 40 | 60 | 35 | 160 |
| PBR40D | 26 | 45 | 57 | 35 | 160 |
| PBR50D | 38 | 76 | 91 | 35 | 16 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| BCR20D | 5.2r/min@57L/min | 9000N.m@160Bar |
| BCR30D | 5.2r/min@57L/min | 9000N.m@160Bar |
Applicable Industries
Building Material Shops, Farms, Retail, Construction works, wool, synthetic, textile bales
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
