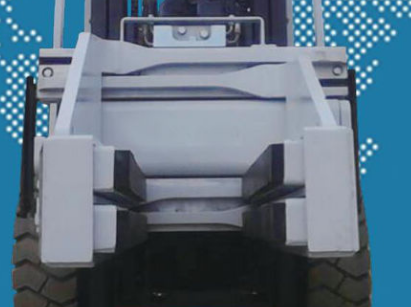

Brick Side Moving Forklift Block Clamp Forklift Truck Parts
Forklift connecting block clamp cement brick clamp side moving type
Functions & Applications
Forklift connecting block clamps are used for non stacking transportation of bricks and bricks produced in different industries all over the world. It can be used to clamp all kinds of stone and concrete blocks. It is especially suitable for non pallet transportation and concrete blocks and bricks. Operation of rockfill, stone, etc.
Features
* High strength T-shaped rod and guide groove structure, durable.
* The rotation life of performing action is long.
Options
* User defined opening range
* Arms of various materials
* Various installation categories are available
* Load backrest
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range O (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Arm Thickness T (mm) |
Overall Height A (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| Sideshifting | ||||||||||||
| 2700@500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 145 | 220 |
| 2700@500 | CKS30D-001B | III | 290-1610 | 128 | 1100 | 1016 | 202 | 710 | 220 | 500 | 152 | 220 |
| 2700@500 | CKS30D-002B | III | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 152 | 220 |
| 2700@500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 202 | 710 | 220 | 550 | 145 | 220 |
| 2700@500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 145 | 211 |
| 2700@500 | CKS30D-003B | III | 290-1610 | 128 | 1000 | 1016 | 202 | 710 | 220 | 490 | 152 | 220 |
| 2700@500 | CKS30D-004B | III | 290-1610 | 242 | 1400 | 1016 | 202 | 710 | 220 | 650 | 152 | 250 |
Page: 1 Obtain the actual production capacity of forklift and forklift accessories manufacturers.
Page: 2 The forklift needs another two sets of oil pipes.
Page: 3 The 128mm high arm is a plastic and the 242mm high arm is a double plastic.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| CKS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right gripper arms are independent joints.
Applicable Industries
Hotels, clothing stores, building materials stores
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
