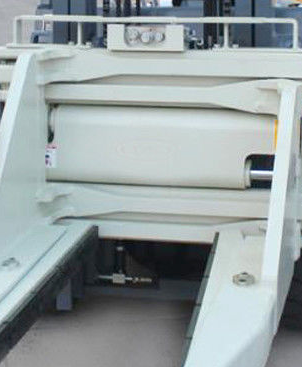

Masonry Forklift Block Clamp 710mm Height Forklift Parts For Sale

Name: Masonry Forklift Block Clamp 710mm Height Forklift Parts For Sale
Brand: Bonafe Technology Co., Ltd

Price Negotiable

Price: Negotiable

MOQ: 1 Units

Delivery Time: 5-8 work days

Brand: Bonafe

Product Description

Forklift connecting block clamp cement plate side moving brick clampMain features of forklift concrete block clamp attachments

1. Wide-view mast

Wide-view mast gives the operator an enhanced forward visibility, which adds great to the efficiency and safety of operator.

2. High-strength overhead guard

Specially designed solid over-head guard provides additional security for the operator.

3. Ergonomics seat

Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.

4. Reliable instruments

The instruments offer an easy access to the working condition of the truck, thus makes handling process more efficient and safe.

Parameter

Capacity@ Load Center (Kg@mm)	Model No.	Mounting Class	Opening Range O (mm)	Arm Height H (mm)	Arm Length L (mm)	Frame Width B (mm)	Arm Thickness T (mm)	Overall Height A (mm)	Vertical Center of Gravity CGV(mm)	Weight (kg)	Effective Thickness ET(mm)	Horizontal Center of Gravity CGH(mm)
Sideshifting
2700@500	CKS30D-001A	II	290-1610	128	1100	1016	202	710	220	500	145	220
2700@500	CKS30D-001B	III	290-1610	128	1100	1016	202	710	220	500	152	220
2700@500	CKS30D-002B	III	290-1610	242	1100	1016	202	710	220	550	152	220
2700@500	CKS30D-002A	II	290-1610	242	1100	1016	202	710	220	550	145	220
2700@500	CKS30D-003A	II	290-1610	128	1000	1016	202	710	220	490	145	211
2700@500	CKS30D-003B	III	290-1610	128	1000	1016	202	710	220	490	152	220
2700@500	CKS30D-004B	III	290-1610	242	1400	1016	202	710	220	650	152	250

Remark:

1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.

2. Two sets of additional oil circuits are required on the forklift.

3. The arm height of 128mm is single glue type, and the arm height of 242mm is double glue type.

Installation&Option
Hydraulic Flow&Pressure

Model	Min. Hydraulic Flow(L/min)	Rec. Hydraulic Flow(L/min)	Max. Hydraulic Flow(L/min)	Min. Hydraulic Pressure(Bar)	Max. Hydraulic Pressure(Bar)
CKS30D	15	40	40	35	160

Options:
* Left and right arm clamping independent movement.

Applicable Industries
Hotels, clothing stores, building materials stores.

Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
