Limestone Concrete Block Lifting Clamps Grab 710mm

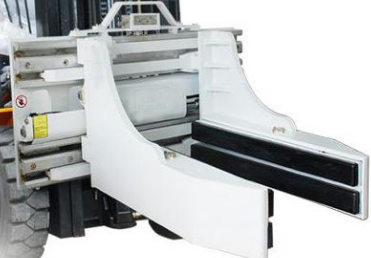

Connecting block clamp of sliding arm forklift
Functions & Applications
Forklift block clamp is mainly used to clamp all kinds of stones and bricks. It is suitable for scenes: floor tiles, precast concrete parts, stones, graphite, etc. It is a non pallet handling accessory.
Features
* The optimized structure layout can ensure good visibility.
* T-type glide pair is assumed to have high strength, uniform stress and long service life.
* The removable wear-resistant strip is chosen, which is convenient, economical and practical to replace after wear.
Options
* User defined range
* Weapons of various materials
* Various installation categories are available
* Load backrest
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range O (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Arm Thickness T (mm) |
Overall Height A (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| Slip-on Arm Type | ||||||||||||
| 2500@550 | CKS30D-101A | II | 270-1610 | 94 | 1100 | 1016 | 202 | 710 | 210 | 430 | 208 | 200 |
| 2500@550 | CKS30D-101B | III | 270-1610 | 94 | 1100 | 1016 | 202 | 710 | 210 | 450 | 216 | 210 |
| 1980@700 | CKS30D-102B | III | 270-1610 | 94 | 1400 | 1016 | 202 | 710 | 192 | 480 | 216 | 220 |
| 2600@510 | CKS30D-103A | II | 270-1610 | 94 | 1020 | 1016 | 202 | 710 | 210 | 425 | 208 | 200 |
| 2600@510 | CKS30D-103B | III | 270-1610 | 94 | 1020 | 1016 | 202 | 710 | 210 | 445 | 216 | 210 |
| 1950@650 | CKS30D-104B | III | 270-1610 | 94 | 1300 | 1016 | 202 | 710 | 192 | 500 | 266 | 220 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The arm height of 128mm is single glue type, and the arm height of 242mm is double glue type.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| CKS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right arms are independent joints.
Applicable Industries
Construction industry, building materials store, landscaping, hotel, clothing store
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
