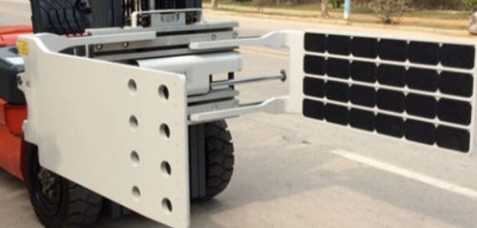

1400kg Forklift Box Clamp 1600mm Opening Fork Truck Parts
1400kg Tobacco carton glue for forklift trucks
Functions & Applications
The tobacco carton clamp can efficiently and economically dispose of waste packaging such as cardboard, wooden box and metal box.
Features
* Durable T-beam arm aluminum frame structure.
* Excellent sliding arm bearing to prolong service life.
* Small rubber pad design, economical.
Options
* User defined range
* Custom arm size
* Various installation categories are available
* Load backrest
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range (mm) |
Arm Height A (mm) |
Arm Length B (mm) |
Frame Width D (mm) |
Arm Thickness C (mm) |
Overall Height H (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1400@500 | MTS15D-001A | II | 460-1600 | 580 | 930 | 940 | 35 | 665 | 220 | 420 | 127 | 300 |
| 1400@500 | MTS15D-002A | II | 460-1600 | 580 | 1130 | 940 | 35 | 665 | 220 | 450 | 127 | 380 |
| 1400@500 | MTS15D-003A | II | 460-1600 | 580 | 1130 | 940 | 30 | 665 | 263 | 430 | 127 | 380 |
Remark:
1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening area is the space between the tips of the two arms.
4. The "C" arm thickness is the actual required operating room.
Other size available on request.
Applicable Industries
Manufacturing plant, machinery repair plant, manufacturing plant, food and beverage plant
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
