1.4T Box Tobacco Forklift Carton Clamp Fork Accessories

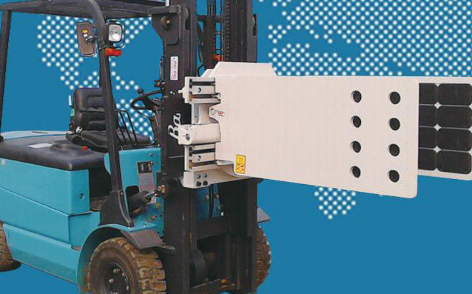

1400kg Tobacco carton clamp for forklift
Functions & Applications
Tobacco carton clamp can efficiently and economically dispose of waste packages such as carton, wooden box and metal box.
Features
* Sustainable T-ray arm structure made of aluminium.
* Excellent glacier storage for prolonging life.
* Small rubber pad design, economical.
Options
* User defined opening range
* Custom arm size
* Various installation categories are available
* Load backrest
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range (mm) |
Arm Height A (mm) |
Arm Length B (mm) |
Frame Width D (mm) |
Arm Thickness C (mm) |
Overall Height H (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1400@500 | MTS15D-001A | II | 460-1600 | 580 | 930 | 940 | 35 | 665 | 220 | 420 | 127 | 300 |
| 1400@500 | MTS15D-002A | II | 460-1600 | 580 | 1130 | 940 | 35 | 665 | 220 | 450 | 127 | 380 |
| 1400@500 | MTS15D-003A | II | 460-1600 | 580 | 1130 | 940 | 30 | 665 | 263 | 430 | 127 | 380 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
Other size available on request.
Applicable Industries
Manufacturing plant, machinery repair, manufacturing plant, food and drink plant
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
