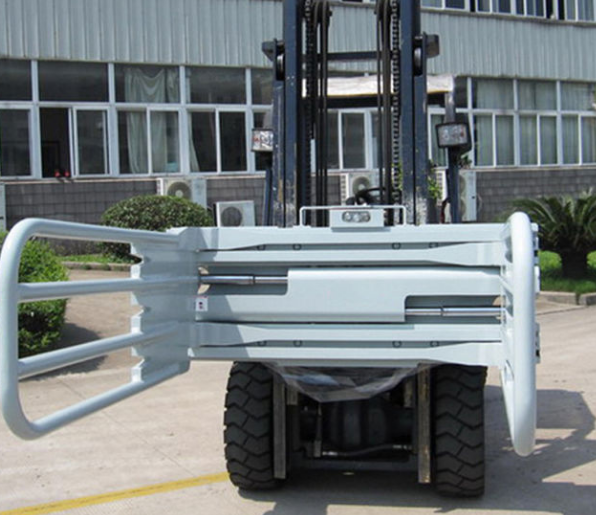

Sponge Foam clamp truck forklift 1 tons 1.5 tons
Foam clamp forklift accessories 1 tons 1.5 tons
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range A (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Arm Thickness C (mm) |
Overall Height (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 500@500 | FMS20D-001A | II | 1260-2630 | 417 | 980 | 1041 | 47 | 665 | 221 | 465 | 127 | 310 |
| 600@500 | FMS20D-002A | II | 850-2230 | 417 | 980 | 1041 | 47 | 665 | 221 | 430 | 127 | 280 |
| 500@1000 | FMS20D-003A | II | 900-2230 | 400 | 1800 | 1041 | 50 | 665 | 221 | 475 | 167 | 280 |
| 200@1000 | FMS20D-004A | II | 1750-3150 | 400 | 1800 | 1900 | 50 | 665 | 221 | 650 | 167 | 280 |
| 500@1000 | FMS20D-005A | II | 1000-2400 | 400 | 1800 | 1041 | 50 | 665 | 221 | 490 | 167 | 280 |
Functions & Applications
Foam rubber can efficiently and economically handle almost all kinds of soft products, including cotton, wool, synthetic fiber, textile bags, corrugated paper, newsprint, rag, hay, metal and other waste bags.
Features
* Excellent driving visibility.
* The regenerative hydraulic valve can achieve the best arm speed.
* Excellent driving visibility.
Options
* Custom opening ranges
* Custom pad size
* Various mounting classes available
* Load backrests
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer. remarks:
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Building material workshop, manufacturing plant and Construction Engineering
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
