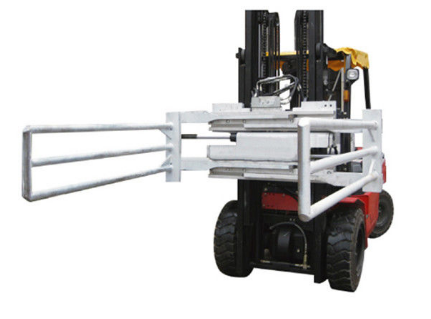

1T 1.5t Fork Truck Clamp Attachments For Rubber Foam
Foam clamp forklift accessories 1t 1,5T
Functions & Applications
Rubber can treat almost all types of soft products efficiently and economically, including cotton, wool, synthetic fibres, textile bags, corrugated paper, newspapers, rags, hay, metal and other waste bags
Features
* Excellent visibility.
* The regenerative hydraulic valve can achieve the best arm speed.
* Excellent visibility.
Options
* User defined opening range
* Custom pad size
* Various installation categories are available
* Load backrest
Parameter
| Capacity@ Load Center (Kg@mm) | Model No. | Mounting Class | Opening Range A (mm) | Arm Height H (mm) | Arm Length L (mm) | Frame Width B (mm) | Arm Thickness C (mm) | Overall Height (mm) | Vertical Center of Gravity CGV(mm) | Weight (kg) | Effective Thickness ET(mm) | Horizontal Center of Gravity CGH(mm) |
| 500@500 | FMS20D-001A | II | 1260-2630 | 417 | 980 | 1041 | 47 | 665 | 221 | 465 | 127 | 310 |
| 600@500 | FMS20D-002A | II | 850-2230 | 417 | 980 | 1041 | 47 | 665 | 221 | 430 | 127 | 280 |
| 500@1000 | FMS20D-003A | II | 900-2230 | 400 | 1800 | 1041 | 50 | 665 | 221 | 475 | 167 | 280 |
| 200@1000 | FMS20D-004A | II | 1750-3150 | 400 | 1800 | 1900 | 50 | 665 | 221 | 650 | 167 | 280 |
| 500@1000 | FMS20D-005A | II | 1000-2400 | 400 | 1800 | 1041 | 50 | 665 | 221 | 490 | 167 | 280 |
Remark:
1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.Comments:
2. Two sets of additional oil circuits are required on the forklift.
3. The opening area is the space between the tips of the two arms.
4. The "C" arm thickness is the actual required operating room.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) | Rec. Hydraulic Flow(L/min) | Max. Hydraulic Flow(L/min) | Min. Hydraulic Pressure(Bar) | Max. Hydraulic Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Construction and construction engineering
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
