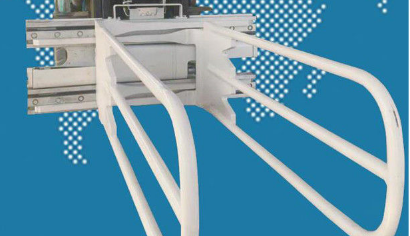

2T Rubber Foam Forklift Clamp Attachment Forklift Parts Suppliers
Tailored forklift accessories
Functions & Applications
The foam glue can handle and stack all types of cotton products, including rubber, chemical and chemical fibres, efficiently and safely.
High strength T-shaped steel and aluminium alloy guide nut structure, durable, thin tensile design, easy to wedge and stack items.
Options
* User defined opening range
* Custom pad size
* Various installation categories are available
* Load backrest
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range A (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Arm Thickness C (mm) |
Overall Height (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 2200@500 | FMS30D-007B | III | 790-2600 | 600 | 2500 | 1600 | 60 | 730 | 250 | 800 | 200 | 280 |
| 2200@500 | FMS30D-008B | III | 790-2600 | 400 | 1800 | 1600 | 60 | 730 | 250 | 680 | 200 | 300 |
Remark:
1. Get the actual capacity of the stacker and accessories from the stacker manufacturer.Comments:
2. Two sets of additional oil circuits are required on the forklift.
3. The opening area is the space between the tips of the two arms.
4. The "C" arm thickness is the actual required operating room.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Hotels, clothing stores, building materials, factories, construction projects
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
