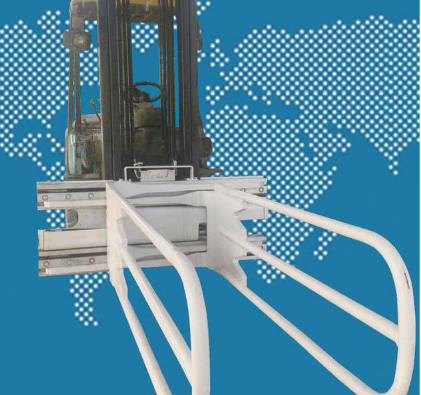

Fork Truck Foam Clamps 790-2600mm Opening
Custom forklift clamp attachment, forklift foam rubber clamp
Functions & Applications
Foam clips can carry and stack any type of cotton products efficiently, safely, including rubber, chemicals and chemical fibers.
High strength T-shaped steel and aluminum alloy guide groove structure, durable, thin clamping arm design, easy to wedge and stack articles.
Options
* Custom opening ranges
* Custom pad size
* Various mounting classes available
* Load backrests
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range A (mm) |
Arm Height H (mm) |
Arm Length L (mm) |
Frame Width B (mm) |
Arm Thickness C (mm) |
Overall Height (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 2200@500 | FMS30D-007B | III | 790-2600 | 600 | 2500 | 1600 | 60 | 730 | 250 | 800 | 200 | 280 |
| 2200@500 | FMS30D-008B | III | 790-2600 | 400 | 1800 | 1600 | 60 | 730 | 250 | 680 | 200 | 300 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer. remarks:
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Hotels, clothing stores, building materials stores, manufacturing plants, construction projects
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
