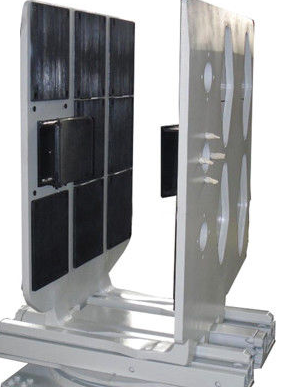

Rigid Arm Forklift Clamp Attachment 665mm Height Forklift Parts Supplier
Multi-purpose fixture for forklift accessories 1.5T
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range (mm) |
Arm Height A(mm) |
Arm Length B (mm) |
Frame Width D (mm) |
Arm Thickness C (mm) |
Overall Height H (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1400@500 | MCS15D-001A | II | 420-1570 | 455 | 955 | 865 | 55 | 665 | 260 | 465 | 175 | 355 |
| 1400@500 | MCS15D-002A | II | 520-1720 | 415 | 1220 | 865 | 70 | 665 | 220 | 485 | 195 | 415 |
MCS15D-001A Arm Height:455, Arm Length:955, Frame Width:865, Arm Thickness:55
MCS15D-002A Arm Height:415, Arm Length:1220, Frame Width:865, Arm Thickness:70
Functions & Applications
It efficiently and economically manages almost all types of cardboard, wooden boxes, metal boxes and packaged products, including tobacco, newspaper paper, chemical fibres, laboratories and ports. Efficient and economical management without work platform
Options
* User defined opening range
* Custom pad size
* Various installation categories are available
* Load backrest
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Arm thickness “C” is the actual requested operation space.
5. Rotating multi-purpose clamps can be choose able.
Other size available on request.
Options:
* Raise and thicken the arms.
* Left and right gripper arms are independent joints.
* 180 degree rotation stop mechanism.
Applicable Industries
Production plant, retail sale, advertising companies, logistics
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
