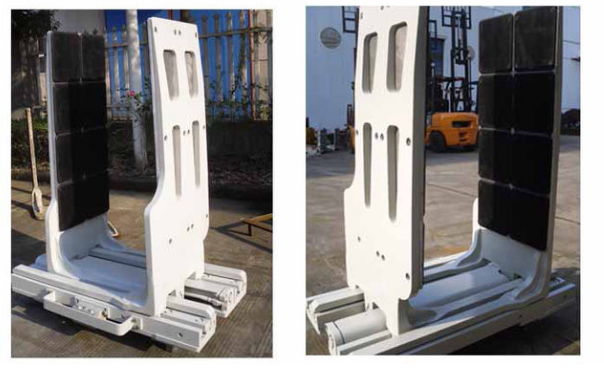

Tobacco Forklift Box Clamp 1570mm Opening Forklift Parts Manufacturing
Multipurpose fixture for 1.5T forklift accessories
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range (mm) |
Arm Height A(mm) |
Arm Length B (mm) |
Frame Width D (mm) |
Arm Thickness C (mm) |
Overall Height H (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1400@500 | MCS15D-001A | II | 420-1570 | 455 | 955 | 865 | 55 | 665 | 260 | 465 | 175 | 355 |
| 1400@500 | MCS15D-002A | II | 520-1720 | 415 | 1220 | 865 | 70 | 665 | 220 | 485 | 195 | 415 |
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The arm thickness "C" is the actual required operating space.
5. You can choose to rotate the multipurpose fixture.
Other size available on request.
Options:
* Raise and thicken the arms.
* Left and right gripper arms are independent joints.
* 180 degree rotation stop mechanism.
Applicable Industries
Manufacturing plant, retail, advertising company, logistics
Can be customized according to size
Customized solutions:
1. Carton Clamp
2. Block Clamp
3. Bale Clamp
4. Roll Clamp
......
all kinds of attachment
