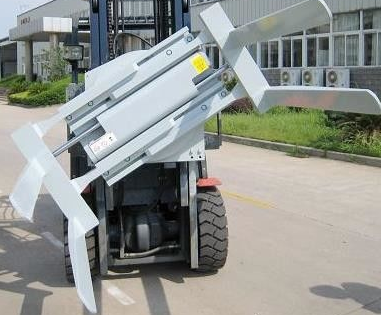

Turnaload Clamp On Forklift Top Clamp Frame Width 1040mm
1600kg forklift connecting turntable with 45x125x1220mm forklift
Parameter
| Capacity@ Load Center (Kg@mm) |
Model No. | Mounting Class | Opening Range (mm) |
Fork Size (mm) |
Frame Width D(mm) |
Fork Spacing (mm) |
Vertical Center of Gravity CGV(mm) |
Weight (kg) |
Effective Thickness ET(mm) |
Horizontal Center of Gravity CGH(mm) |
| 1600@600 | TAL20D-004A | II | 715-1960 | 45x125x1220 | 940 | 850 | 265 | 662 | 295 | 325 |
| 1600@600 | TAL20D-005A | II | 660-1900 | 45x125x1220 | 940 | 450 | 265 | 750 | 295 | 325 |
| 1600@600 | TAL20D-006A | II | 555-1830 | 50x125x1200 | 1040 | 560 | 265 | 750 | 300 | 330 |
| 1600@600 | TAL20D-007A | II | 618-1830 | 40x125x1220 | 940 | 635 | 265 | 662 | 290 | 325 |
Product Description
TAL20D-004A Fork Size 45x125x1220mm, Frame Width 940mm, EffectiveThickness 295mm, Vertical Center of Gravity 265mm
TAL20D-005A Fork Size 45x125x1220mm, Frame Width 940mm, EffectiveThickness 295mm, Vertical Center of Gravity 265mm
TAL20D-006A Fork Size 50x125x1200mm, Frame Width 1040mm, EffectiveThickness 300mm, Vertical Center of Gravity 265mm
TAL20D-007A Fork Size 40x125x1220mm, Frame Width 940mm, EffectiveThickness 290mm, Vertical Center of Gravity 265mm
Options
* Fork size
* Various installation categories are available
* User defined opening range
Remark:
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The opening range is the space between the tips of the two arms.
4. The fork size can be customized according to user requirements.
Installation&Option
Hydraulic Flow&Pressure
| Model | Min. Hydraulic Flow(L/min) |
Rec. Hydraulic Flow(L/min) |
Max. Hydraulic Flow(L/min) |
Min. Hydraulic Pressure(Bar) |
Max. Hydraulic Pressure(Bar) |
| TAL20D | 20 | 40 | 60 | 35 | 160 |
Rotator Specifications
| Model | Rotator Speed | Rotator Torque |
| TAL20D | 5.2r/min@57L/min | 9000N.m@160Bar |
Applicable Industries
Manufacturing Plant, Chemical fiber, Workshop, Port industries
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
