23S-15-12720 Friction Disc Komatsu 23S1512720 Plate GD505A GD511A GD521A GD525A GD605A
1. Product Details
| Part NO. | 23S-15-12720 23S1512720 |
| Machine | Komatsu |
| Model | GD505A GD511A GD521A GD525A GD605A |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gold |

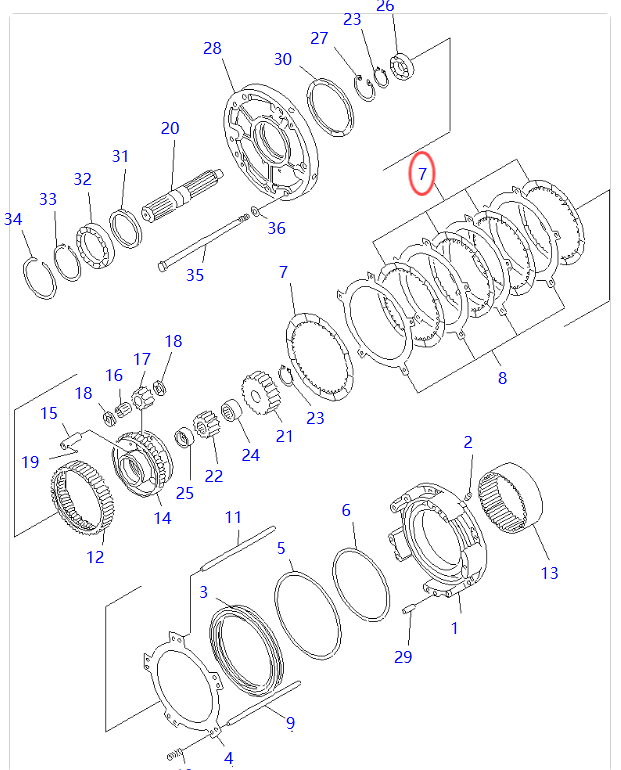

2. 23S-15-12720 ON GROUP:
| Pos. | Part No. | Qty | Parts name |
| 1 | 23A-15-11173 | [1] | HOUSING |
| 2 | 113-15-25490 | [1] | PLUG |
| 3 | 23B-15-12762 | [1] | PISTON |
| 4 | 238-15-12760 | [1] | PLATE |
| 5 | 154-15-22831 | [1] | RING,SEAL (K1) |
| 6 | 23B-15-19220 | [1] | SEAL,RING (K1) |
| 7 | 23S-15-12720 | [5] | Friction Disc |
| 8 | 238-15-12810 | [4] | PLATE |
| 9 | 22W-15-21280 | [5] | PIN,(D=10¤ L=270) |
| 10 | 23B-15-12930 | [5] | SPRING,(L=40.1) |
| 11 | 22W-15-21270 | [5] | PIN,(D=12¤ L=270) |
| 12 | 23B-15-12611 | [1] | GEAR,RING |
| 13 | 22W-15-22620 | [1] | GEAR,RING |
| 14 | 23A-15-12310 | [1] | CARRIER |
| 15 | 22W-15-22510 | [3] | SHAFT |
| 16 | 423-15-19421 | [3] | BEARING Komatsu |
| 17 | 23A-15-12410 | [3] | GEAR Komatsu |
| 18 | 22W-15-22570 | [6] | WASHER,THRUST Komatsu |
| 19 | 04260-00635 | [3] | BALL Komatsu |
| 20 | 23A-15-12110 | [1] | SHAFT,INPUT |
| 21 | 23A-15-12221 | [1] | GEAR |
| 22 | 22W-15-22212 | [1] | GEAR |
| 23 | 04064-04518 | [2] | RING,SNAP |
| 24 | 23A-15-12150 | [1] | SPACER |
| 25 | 423-15-12140 | [1] | SPACER Komatsu |
| 26 | 06000-06009 | [1] | BEARING Komatsu |
| 27 | 04065-07525 | [1] | RING,SNAP Komatsu |
| 28 | 23A-15-11181 | [1] | HOUSING |
| 29 | 04020-01228 | [4] | PIN,DOWEL Komatsu |
| 30 | 23S-15-21220 | [1] | RING,SEAL Komatsu |
| 31 | 423-15-12810 | [1] | SPACER Komatsu |
| 32 | 06000-06918 | [1] | BEARING Komatsu |
| 33 | 04064-09030 | [1] | RING,SNAP Komatsu |
| 34 | 04071-00125 | [1] | RING,SNAP Komatsu |
| 35 | 23A-15-11240 | [8] | BOLT |
| 36 | 103-15-11220 | [8] | WASHER Komatsu |

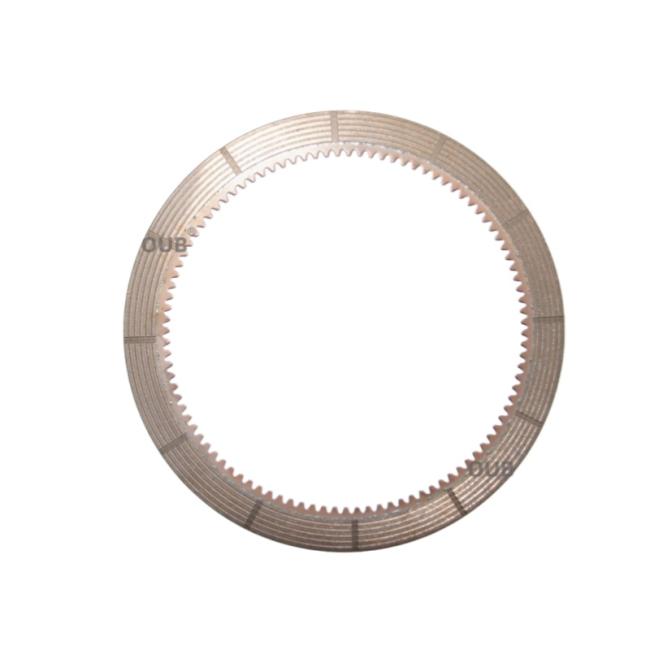

3. Picture details of 23S-15-12720:
4. PART NO.ON GROUP:
| Part No. | Part No. |
| 12F-10-11240 | 113-15-22730 |
| 23S-15-12720 | 124-15-52710 |
| 23S-15-12730 | 125-15-32750 |
| 23S-15-12740 | 131-10-11110 |
| 104-22-33321 | 131-10-11120 |
| 110-22-11332 | 131-10-61140 |
| 111-11-12120 | 131-21-43220 |
| 113-15-22720 | 150-21-23111 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2. How do you answer my questions?
A2. We have professional sales and technical staff to reply you online. At the same time, you can also send us a message via email or WhatsApp
Q3. Why can't I find what I need on your website?
A3. Contact us directly and we will help you save your valuable time.
Q4. Can you quote for only one part number?
A4. Of cause.We can check by a part no.or machine no.or size or picture.
Q5. Are you a factory or a trader?
A5. We are a factory and we also have our own sales team.
7. Exhibition & Warehous
Machine NO. ,Model No. Part No. , And More
