23S-15-12730 Clutch Disc 23S1512730 Friction Plate for Komatsu Grader GD605A GD611A GD621AR GD623A GD625A GD661A GD663A
1. Product Details
| Part NO. | 23S-15-12730 23S1512730 |
| Machine | Komatsu |
| Model | GD605A GD611A GD621A GD621R GD623A GD625A GD661A GD663A |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gold BLACK |

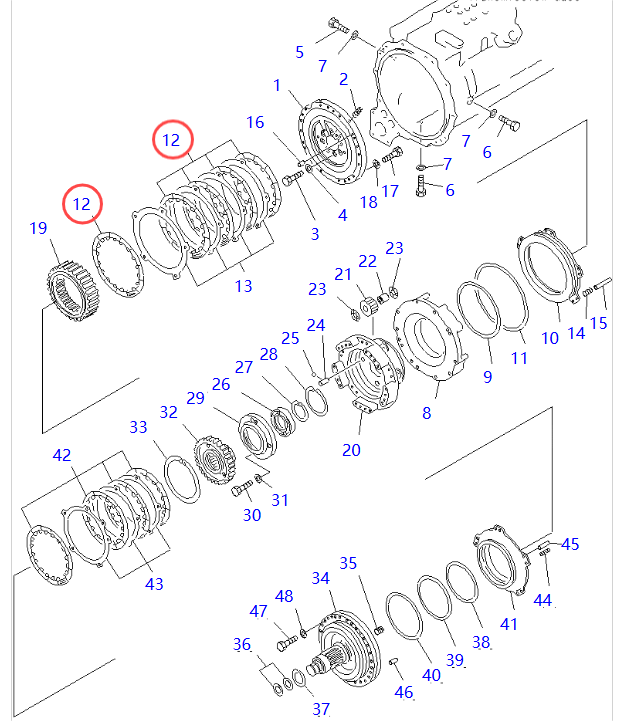

2. 23S-15-12730 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1 | 23B-15-11130 | [1] | HOUSING,LOW |
| 2 | 07043-00211 | [1] | PLUG |
| 3 | 01010-81025 | [7] | BOLT |
| 4 | 01643-51032 | [7] | WASHER |
| 5 | 01010-61685 | [1] | BOLT |
| 6 | 01010-61670 | [2] | BOLT |
| 7 | 01643-31645 | [3] | WASHER |
| 8 | 23B-15-11120 | [1] | HOUSING,LOW |
| 9 | 567-15-12830 | [1] | RING,SEAL (K1) |
| 10 | 23B-15-12750 | [1] | PISTON,LOW |
| 11 | 113-15-12870 | [1] | RING,SEAL (K1) |
| 12 | 23S-15-12730 | [5] | DISC |
| 13 | 124-15-42720 | [4] | PLATE |
| 14 | 562-15-16210 | [5] | SPRING,(L=76.6) |
| 15 | 103-15-12890 | [5] | PIN,(D=12¤ L=101) |
| 16 | 04020-01228 | [2] | PIN,DOWEL |
| 17 | 01010-81255 | [10] | BOLT |
| 18 | 103-15-11220 | [10] | WASHER |

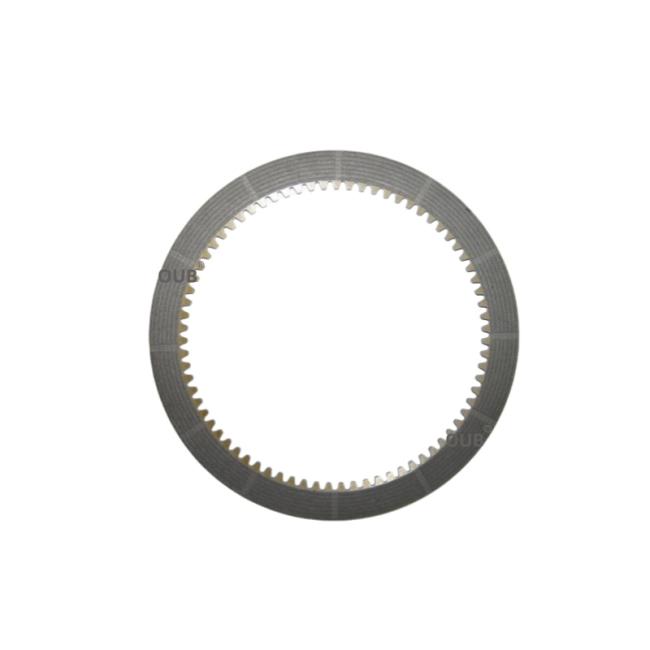

3. Picture details of 23S-15-12730:
4. PART NO. ON THE GROUP
| Part No. | Part No. |
| 131-10-61140 | 110-22-11332 |
| 131-21-43220 | 111-11-12120 |
| 150-21-23111 | 113-15-22720 |
| 175-22-11140 | 113-15-22730 |
| 232-25-51430 | 124-15-52710 |
| 235-25-11360 | 125-15-32750 |
| 281-15-12720 | 131-10-11110 |
| 714-07-29710 | 131-10-11120 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2. How do you answer my questions?
A2. We have professional sales and technical staff to reply you online. At the same time, you can also send us a message via email or WhatsApp
Q3. Why can't I find what I need on your website?
A3. Contact us directly and we will help you save your valuable time.
Q4. Can you quote for only one part number?
A4. Of cause.We can check by a part no.or machine no.or size or picture.
Q5. Are you a factory or a trader?
A5. We are a factory and we also have our own sales team.
7. Exhibition & Warehous
Machine NO. ,Model No. Part No. , And More
