23S-15-12740 Friction TRANSMISSION (LOW AND HIGH CLUTCH) 23S1512740 Komatsu GD305A,GD405A,GD505A,GD511A,GD521A,GD525A
1. Product Details
| Part NO. | 23S-15-12740 23S1512740 |
| Machine | Komatsu |
| Model | GD305A, GD355A, GD405A, GD505A, GD511A, GD521A, GD525A |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gold |

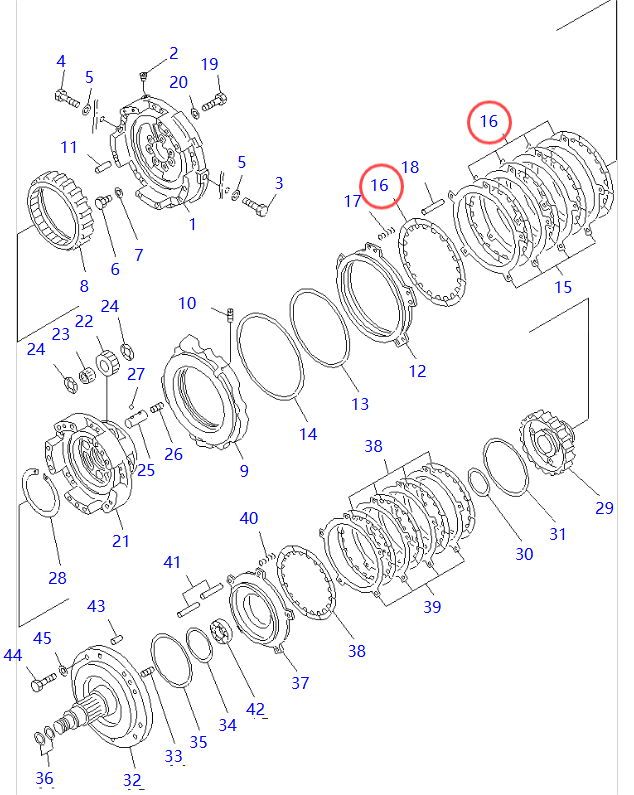

2. 23S-15-12740 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1 | 23E-15-00160 | [1] | HOUSING ,LOW AND HIGH |
| 2 | 07043-70211 | [1] | PLUG |
| 3 | 01010-61675 | [2] | BOLT |
| 4 | 01010-61665 | [1] | BOLT |
| 5 | 01643-31645 | [3] | WASHER |
| 6 | 01010-81025 | [7] | BOLT |
| 7 | 01643-51032 | [7] | WASHER |
| 8 | 23E-15-12660 | [1] | GEAR,RING |
| 10 | 113-15-25490 | [1] | PLUG |
| 11 | 04020-01228 | [2] | PIN,DOWEL |
| 12 | 23E-15-12770 | [1] | PISTON,LOW |
| 13 | 125-15-39210 | [1] | RING,SEAL (K1) |
| 14 | 113-15-12861 | [1] | RING,SEAL (K1) |
| 15 | 238-15-12810 | [4] | PLATE |
| 16 | 23S-15-12740 | [5] | FRICTION DISC |
| 17 | 103-15-22911 | [5] | SPRING,(L=54) |
| 18 | 238-15-11271 | [5] | PIN,(D=12, L=80) |
| 19 | 01010-81280 | [8] | BOLT |
| 20 | 103-15-11220 | [8] | WASHER |
| 21 | 23E-15-12340 | [1] | CARRIER |
| 22 | 23E-15-12451 | [4] | GEAR |
| 23 | 09232-02525 | [4] | BEARING |
| 24 | 09233-12620 | [8] | WASHER,THRUST |

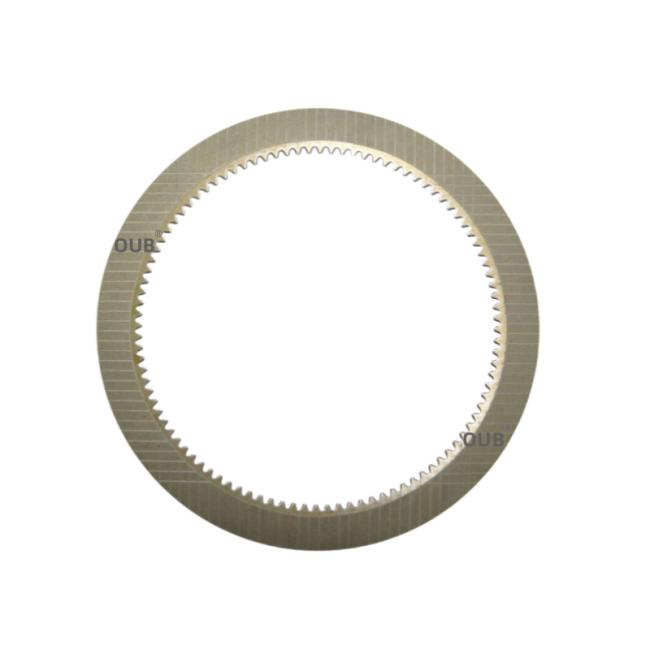

3. Picture details of 23S-15-12740:
4. Part No.on the Group
| Part No. | Part No. |
| 12F-10-11240 | 23S-15-12740 |
| 23S-15-12720 | 104-22-33321 |
| 23S-15-12730 | 110-22-11332 |
| 124-15-52710 | 111-11-12120 |
| 131-10-61140 | 235-25-11360 |
| 131-21-43220 | 281-15-12720 |
| 150-21-23111 | 131-10-11110 |
| 175-22-11140 | 131-10-11120 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2. How do you answer my questions?
A2. We have professional sales and technical staff to reply you online. At the same time, you can also send us a message via email or WhatsApp
Q3. Why can't I find what I need on your website?
A3. Contact us directly and we will help you save your valuable time.
Q4. Can you quote for only one part number?
A4. Of cause.We can check by a part no.or machine no.or size or picture.
Q5. Are you a factory or a trader?
A5. We are a factory and we also have our own sales team.
