113-15-22730 Friction Disc Komatsu Plate 1131522730 D21A D21E D31Q D31SM PW128UU GD355A GD405A WA40
1. Product Details
| Part NO. | 113-15-22730 1131522730 |
| Machine | Komatsu |
| Model | D21A D21AG D21E D31Q D31S D31SM PW128UU GD305A GD355A GD405A WA40 DWT031 DWT037 |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gray |

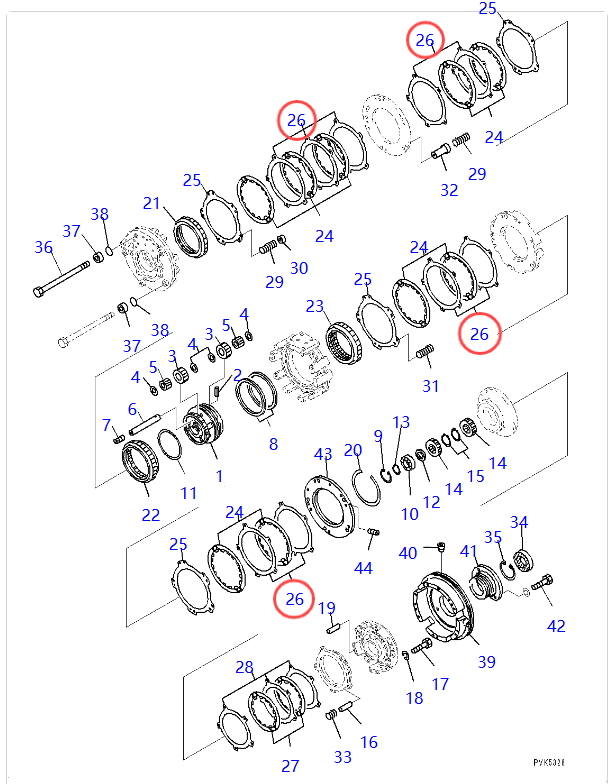

2. 113-15-22730 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1. | 104-15-22322 | [1] | Carrier |
| 2. | 113-15-29560 | [4] | Pin, Spring |
| 3. | 103-15-22421 | [8] | Gear |
| 4. | 113-15-32560 | [16] | Washer, Thrust |
| 5. | 104-15-49430 | [8] | Bearing |
| 6. | 103-15-22521 | [4] | Shaft |
| 7. | 145-14-11320 | [4] | Plug |
| 8. | 113-15-29240 | [2] | Seal Ring |
| 9. | 04065-06220 | [1] | Ring, |
| 10. | 06000-06007 | [1] | Bearing |
| 11. | 113-15-22930 | [1] | Ring, |
| 12. | 104-15-22170 | [1] | Spacer |
| 13. | 04064-03515 | [1] | Ring, |
| 14. | 104-15-42230 | [2] | Gear |
| 15. | 103-15-29510 | [2] | Ring, |
| 16. | 104-15-21280 | [10] | Pin |
| 17. | 01010-80845 | [10] | Bolt |
| 18. | 01602-20825 | [10] | Washer |
| 19. | 04020-01024 | [2] | Pin, Dowel |
| 20. | 113-15-29510 | [1] | Ring, |
| 21. | 104-15-22620 | [1] | Gear, Ring |
| 22. | 103-15-22630 | [1] | Gear, Ring |
| 23. | 104-15-22641 | [1] | Gear, Ring |
| 24. | 113-15-42711 | [9] | Disc |
| 25. | 113-15-22720 | [4] | Plate |
| 26. | 113-15-22730 | [9] | Friction Disc |

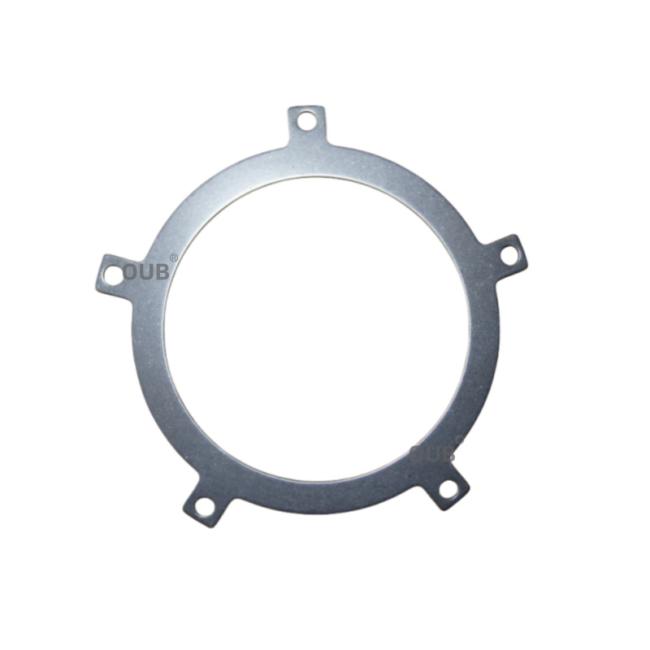

3. Picture details of 113-15-22730:
4. Part No.on the Group
| Part No. | Part No. |
| 131-10-11110 | 12F-10-11240 |
| 131-10-11120 | 23S-15-12720 |
| 131-10-61140 | 23S-15-12730 |
| 131-21-43220 | 23S-15-12740 |
| 150-21-23111 | 104-22-33321 |
| 175-22-11140 | 110-22-11332 |
| 232-25-51430 | 111-11-12120 |
| 235-25-11360 | 113-15-22720 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2: What is the model number of the Friction Disc?
A2: The model number of the Friction Disc is 113-15-22730
Q3. Why can't I find what I need on your website?
A3. Contact us directly and we will help you save your valuable time.
Q4. Can you quote for only one part number?
A4. Of cause.We can check by a part no.or machine no.or size or picture.
Q5. Are you a factory or a trader?
A5. We are a factory and we also have our own sales team.
