124-15-52710 Friction Disc Komatsu 1241552710 D41A D41E D41E6T D41P D41PF
1. Product Details
| Part NO. | 124-15-52710 1241552710 |
| Machine | Komatsu |
| Model | D41A D41E D41E6T D41P D41PF |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gray |

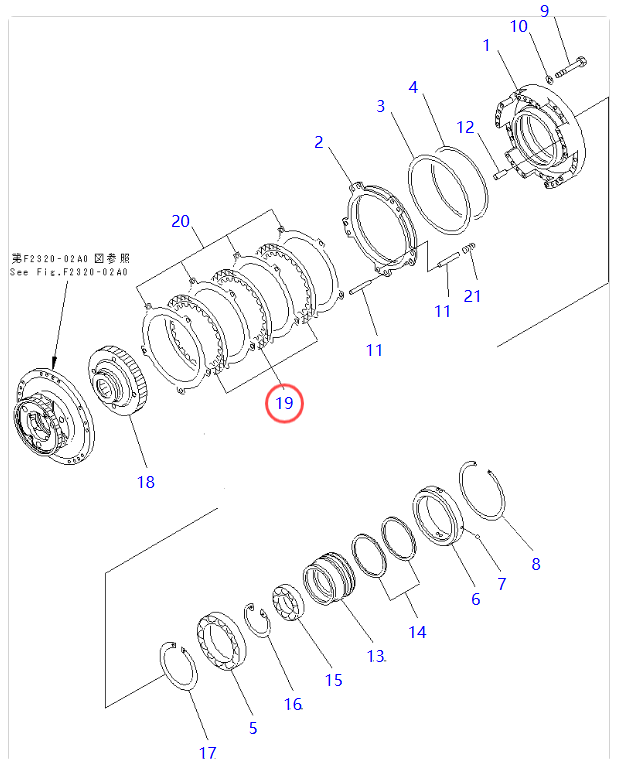

2. 124-15-52710 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1. | 124-15-52341 | [1] | HOUSING,1ST |
| 2. | 124-15-52770 | [1] | PISTON |
| 3. | 113-15-29250 | [1] | RING (K1) OEM |
| 4. | 103-15-29270 | [1] | SEAL (K1) |
| 5. | 06000-06921 | [1] | BEARING |
| 6. | 124-15-52390 | [1] | BUSHING |
| 7. | 04260-00635 | [1] | BALL |
| 8. | 04071-00150 | [1] | RING |
| 9. | 01010-80875 | [18] | BOLT |
| 10. | 01643-50823 | [18] | WASHER |
| 11. | 22W-15-21290 | [10] | PIN,(D=10.0¤ L= 65.0) |
| 12. | 04020-01024 | [2] | PIN |
| 13. | 124-15-52381 | [1] | CAGE |
| 14. | 07018-21155 | [2] | RING |
| 15. | 06042-00210 | [1] | BEARING |
| 16. | 04065-09030 | [1] | RING |
| 17. | 04070-00105 | [1] | RING |
| 18. | 124-15-52271 | [1] | HUB |
| 19. | 124-15-52710 | [3] | Friction Disc |
| 20. | 125-15-32750 | [4] | PLATE |
| 21. | 23A-15-12910 | [5] | SPRING,(L= 35.0) |

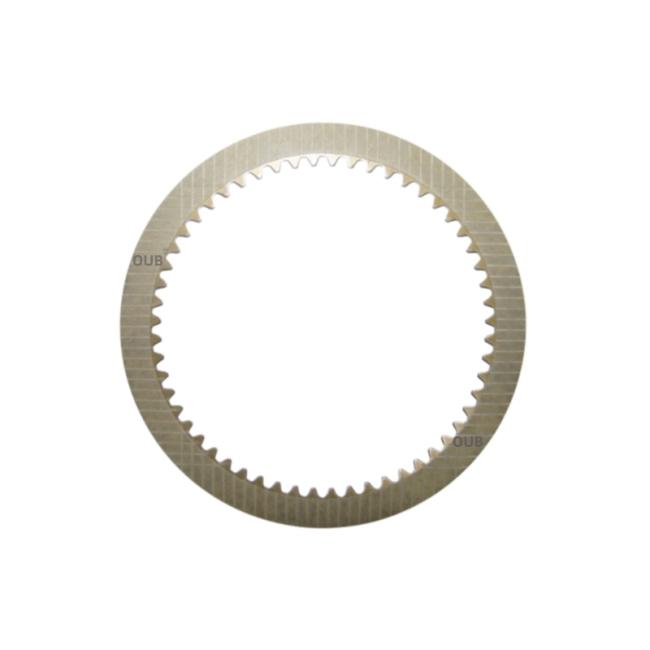

3. Picture details of 124-15-52710:
4. Part No.on the Group
| Part No. | Part No. |
| 12F-10-11240 | 124-15-52710 |
| 23S-15-12720 | 125-15-32750 |
| 23S-15-12730 | 131-10-11110 |
| 23S-15-12740 | 131-10-11120 |
| 104-22-33321 | 131-10-61140 |
| 110-22-11332 | 131-21-43220 |
| 111-11-12120 | 150-21-23111 |
| 113-15-22720 | 175-22-11140 |
