131-21-43220 Clutch Friction Disc Plate For Komatsu 1312143220 Bulldoze D40A D40AF D40PF D40PLF D45A D45P D45S D50P S
1. Product Details
| Part NO. | 131-21-43220 1312143220 |
| Machine | Komatsu |
| Model | D40A D40AF D40PF D40PL D40PLF D45A D45P D45S D50P D50S |
| Size | OEM Standard |
| Material | HQC,HQP,HQE,HQM |
| Color | Silver golden |

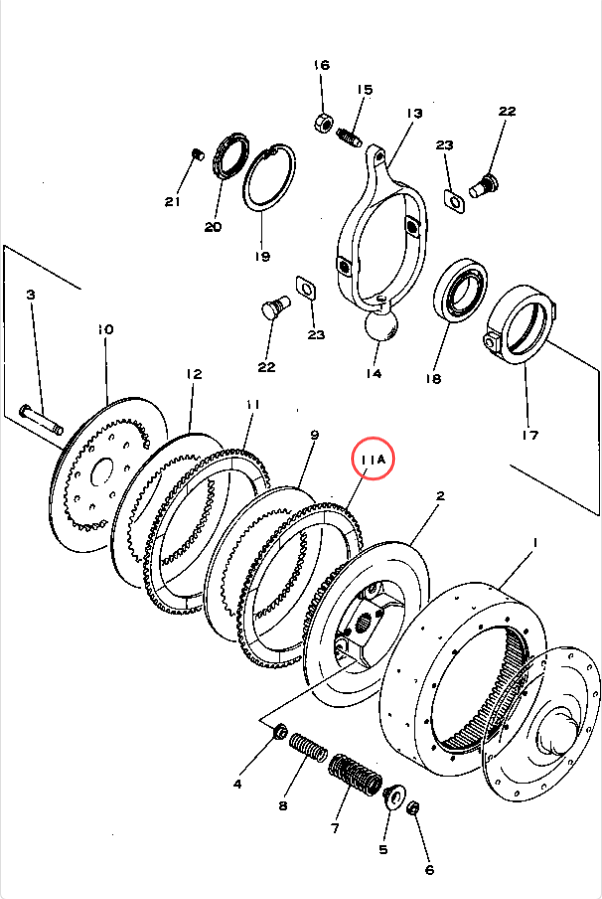

2. 131-21-43220 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1. | 125-21-23320 | [1] | DRUM |
| 2. | 125-21-23311 | [1] | DRUM,STEERING CLUTCH |
| 2. | 125-21-23310 | [1] | DRUM,STEERING CLUTCH |
| 3. | 131-21-43120 | [8] | ROD |
| 4. | 130-807-5630 | [8] | RETAINER |
| 5. | 130-22-11132 | [8] | RETAINER |
| 6. | 130-22-11150 | [8] | LOCK |
| 7. | 130-807-5610 | [8] | SPRING,CLUTCH |
| 8. | 130-807-5620 | [8] | SPRING,CLUTCH |
| 9. | 131-21-23160 | [1] | PLATE |
| 9. | 130-807-5330 | [1] | PLATE |
| 10. | 125-21-23331 | [1] | PLATE,PRESSURE |
| 10. | 125-21-23330 | [1] | PLATE,PRESSURE |
| 11. | 125-21-23150 | [5] | DISC |
| 11. | 125-21-23121 | [5] | DISC |
| 11A. | 131-21-43220 | [1] | DISC |
| 12. | 125-21-23250 | [5] | PLATE |
| 12. | 130-22-11320 | [4] | PLATE |
| 13 | 125-21-23351 | [2] | YOKE |
| 13 | 125-21-23350 | [2] | YOKE |
| 14. | 131-10-41450 | [1] | BALL |
| 15 | 125-21-23210 | [2] | SCREW |
| 16 | 01583-11610 | [2] | NUT |
| 17 | 125-21-23340 | [2] | CAGE |
| 18 | 06002-07215 | [2] | BEARING |
| 19 | 04071-00130 | [2] | RING,SNAP |
| 20 | 125-21-23380 | [2] | NUT |
| 21 | 100-22-14150 | [2] | SCREW |
| 22 | 120-22-11250 | [4] | PIN |
| 23 | 125-21-23370 | [4] | LOCK |

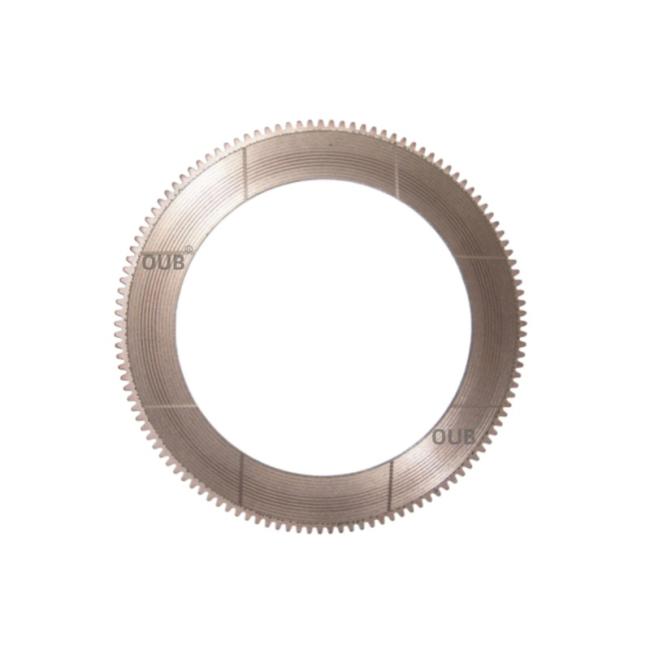

3. Picture details of 131-21-43220:
4. Part No.on the Group
| Part No. | Part No. |
| 104-22-33321 | 131-10-61140 |
| 110-22-11332 | 131-21-43220 |
| 111-11-12120 | 150-21-23111 |
| 113-15-22720 | 175-22-11140 |
| 113-15-22730 | 232-25-51430 |
| 124-15-52710 | 235-25-11360 |
| 125-15-32750 | 281-15-12720 |
| 131-10-11110 | 714-07-29710 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2: What is the price of the Friction Disc?
A2: The price of the Friction Disc is negotiable.
Q3: What is the minimum order quantity for the Friction Disc?
A3: The minimum order quantity for the Friction Disc is 1.
Q4: What are the packaging details for the Friction Disc?
A4: The packaging details for the Friction Disc is PP Bag.
Q5: What is the delivery time for the Friction Disc?
A5: The delivery time for the Friction Disc is within 3-10 days after getting your deposit.
