232-25-51430 Friction Clutch Disc For Komatsu 2322551430 GD623A GD705A GD725A GD755 GD805 GD825A GH320 WA350 WA400 WA470
1. Product Details
| Part NO. | 232-25-51430 2322551430 |
| Machine | Komatsu |
| Model | GD505A GD623A GD705A GD725A GD755 GD805A GD825A GH320 WA350 WA400 WA470 |
| Size | OEM Standard |
| Material | HQC,HQP,HQE,HQM |
| Color | Silver |

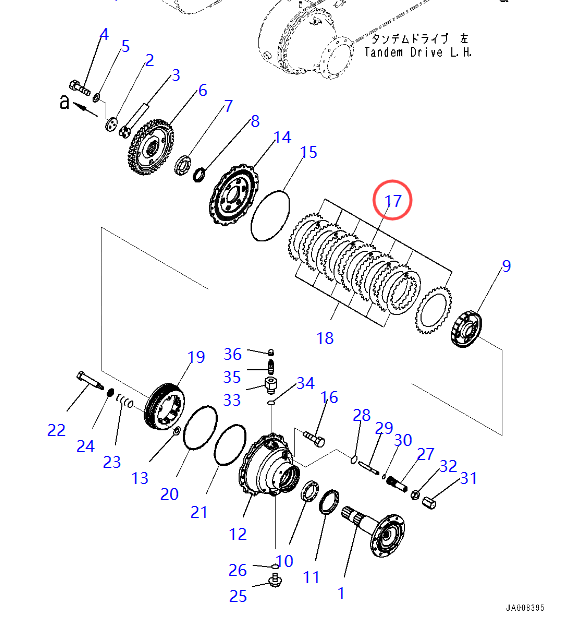

2. 232-25-51430 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1. | 23C-25-61130 | [2] | Shaft |
| 2. | 23C-25-51370 | [2] | Holder |
| 3. | 23C-25-51410 | [4] | Shim, T=0.5mm |
| 3. | 23C-25-51420 | [6] | Shim, T=0.2mm |
| 3. | 23C-25-51430 | [2] | Shim, T=0.1mm |
| 3. | 23C-25-51440 | [2] | Shim, T=0.05mm |
| 4. | 01010-61650 | [6] | Bolt |
| 5. | 01643-31645 | [6] | Washer |
| 6. | 23C-25-61150 | [2] | Sprocket |
| 7. | 06302-30220 | [2] | Bearing |
| 8. | 23C-25-61350 | [2] | Spacer |
| 9. | 23C-25-61170 | [2] | Gear |
| 10. | 421-22-32850 | [2] | Bearing |
| 11. | 423-22-22461 | [2] | Seal OEM |
| 12. | 23C-25-61111 | [2] | Cage |
| 13. | 23C-25-61190 | [12] | Washer |
| 14. | 23C-25-61160 | [2] | Cage |
| 15. | 07000-15460 | [2] | O-ring |
| 16. | 01010-81635 | [4] | Bolt |
| 17. | 232-25-51430 | [14] | Plate OEM |
| 18. | 23C-25-51331 | [12] | Disc |
| 19. | 23C-25-51120 | [2] | Piston |
| 20. | 232-25-51170 | [2] | O-ring |
| 21. | 23B-25-33150 | [2] | O-ring |
| 22. | 23B-25-33132 | [12] | Guide |
| 23. | 714-12-17161 | [12] | Spring |
| 24. | 23B-25-33610 | [12] | Washer |
| 25. | 07044-12412 | [2] | Plug |

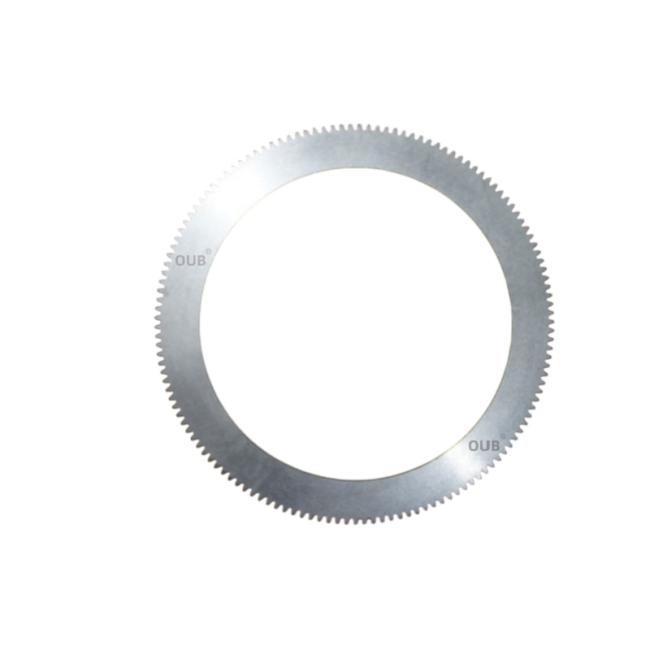

3. Picture details of 232-25-51430:
4. Part No.on the Group
| Part No. | Part No. |
| 175-22-11140 | 110-22-11332 |
| 232-25-51430 | 111-11-12120 |
| 235-25-11360 | 113-15-22720 |
| 281-15-12720 | 113-15-22730 |
| 714-07-29710 | 131-10-11110 |
| 12F-10-11240 | 131-10-11120 |
| 23S-15-12720 | 131-10-61140 |
| 23S-15-12730 | 131-21-43220 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2: What is the price of the Friction Disc?
A2: The price of the Friction Disc is negotiable.
Q3: Can you send by air?
A3: Of cause we can,we can send by DHL,FeDex,UPH or many other type..
Q4: What are the packaging details for the Friction Disc?
A4: The packaging details for the Friction Disc is PP Bag.
Q5: What is the delivery time for the Friction Disc?
A5: The delivery time for the Friction Disc is within 3-10 days after getting your deposit.
