235-25-11360 Friction Disc Komatsu 2352511360 538 GD505A GD605A GD705A GD725A GD805A GD825A WA350 WA470
1. Product Details
| Part NO. | 235-25-11360 2352511360 |
| Machine | Komatsu |
| Model | 538 GD505A GD605A GD705A GD725A GD805A GD825A WA350 WA470 |
| Size | OEM Standard |
| Material | HQC,HQP,HQE,HQM |
| Color | Silver Gray black |
2. 235-25-11360 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1. | 423-33-11140 | [1] | CYLINDER, LH FRONT WHEEL BRAKE |
| 423-33-11151 | [1] | CYLINDER, RH FRONT WHEEL BRAKE | |
| 2. | 581-32-12140 | [2] | PLUG |
| 3. | 566-32-11430 | [2] | BLEEDER |
| 4. | 566-32-11620 | [2] | CAP |
| 5. | 07040-11409 | [4] | PLUG |
| 6. | 07002-31423 | [4] | O-RING, PLUG |
| 7. | 423-33-11160 | [2] | PISTON |
| 8. | 423-33-11430 | [2] | SEAL, PISTON |
| 9. | 423-33-11440 | [2] | SEAL, PISTON |
| 10. | 423-33-11651 | [16] | PIN, GUIDE |
| 11. | 423-33-11630 | [16] | SPRING, GUIDE |
| 12. | 04020-00514 | [16] | PIN, DOWEL |
| 13. | 07040-12414 | [16] | PLUG, GUIDE |
| 14. | 07020-01234 | [16] | O-RING, GUIDE PLUG |
| 15. | 235-25-11360 | [8] | DISC, BRAKE OEM |
| 16. | 232-25-51430 | [10] | PLATE, BRAKE OEM |
| 17. | 421-33-11280 | [2] | PLATE, BRAKE OEM |
| 18. | 423-33-11311 | [2] | GEAR |
| 19. | 01010-61655 | [30] | BOLT |
| 20. | 01643-31645 | [30] | WASHER |
| 21. | 423-33-11230 | [2] | GEAR |
| 22. | 07000-05420 | [2] | O-RING, CYLINDER |
| 23. | 07000-02016 | [2] | O-RING, CYLINDER |
| 24. | 01010-31440 | [24] | BOLT |
| 25. | 01643-31445 | [24] | WASHER |
| 423-33-00021 | [2] | SEAL ASSY, FLOATING OEM | |
| 26 | 423-33-00040 | [1] | RING, SEAL |
| 27 | 195-27-00150 | [1] | O-RING |
| 28. | 07000-05230 | [2] | O-RING, CYLINDER |
| 29. | 07040-12012 | [2] | PLUG (FOR SHIPPING) |
| 30. | 07002-12034 | [2] | O-RING (FOR SHIPPING) |

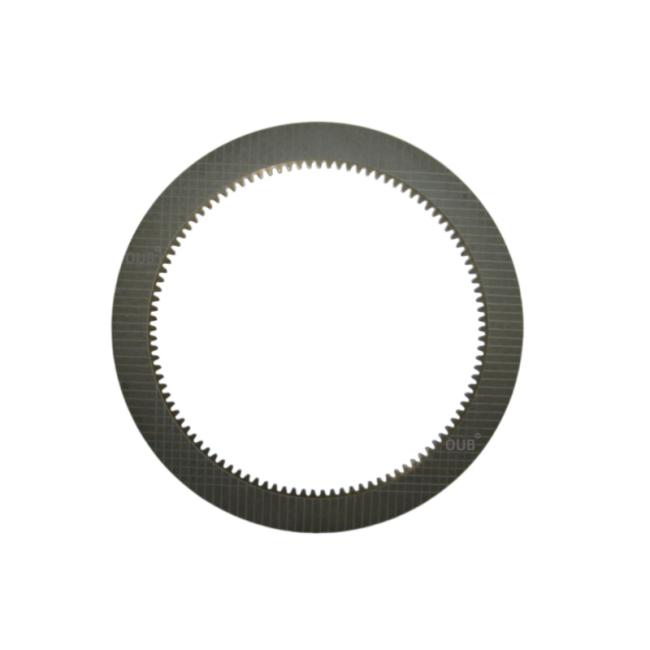

3. Picture details of 235-25-11360:
4. Part No.on the Group
| Part No. | Part No. |
| 12F-10-11240 | 125-15-32750 |
| 23S-15-12720 | 131-10-11110 |
| 23S-15-12740 | 131-10-61140 |
| 104-22-33321 | 131-21-43220 |
| 110-22-11332 | 175-22-11140 |
| 113-15-22720 | 232-25-51430 |
| 113-15-22730 | 235-25-11360 |
| 124-15-52710 | 281-15-12720 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2: What is the price of the Friction Disc?
A2: The price of the Friction Disc is negotiable.
Q3: What is the minimum order quantity for the Friction Disc?
A3: The minimum order quantity for the Friction Disc is 1.
Q4: What are the packaging details for the Friction Disc?
A4: The packaging details for the Friction Disc is PP Bag.
Q5: What is the delivery time for the Friction Disc?
A5: The delivery time for the Friction Disc is within 3-10 days after getting your deposit.
