4720856 Friction Disc VOE4720856 - Volvo.Heavy 4600B L120C L120C VOLVO BM L120D L150/L150C VOLVO BM L150C L150D L160 L180
1. Product Details
| Part NO. | 4720856 |
| Machine | Volvo |
| Model | 4600B L120C L120C VOLVO BM L120D L150/L150C VOLVO BM L150C L150D L160 L180 |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gray |

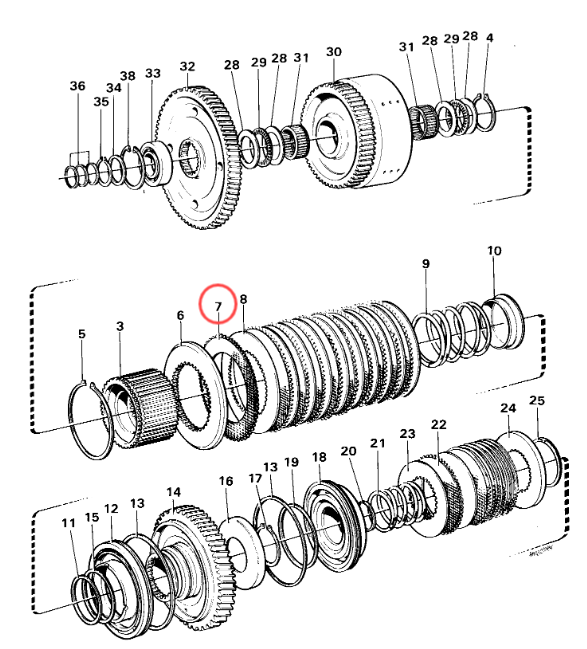

2. 4720856 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 4 | 945502 | [0001] | Retaining ring |
| 5 | 13949928 | [0001] | Snap ring |
| 6 | 4720858 | [0001] | Pressure plate |
| 7 | 4720856 | [0010] | Friction disc |
| 8 | 4720857 | [0010] | Steel disc |
| 4720850 | [0001] | Hydraulic clutch | |
| 9 | 11037195 | [0001] | Spring |
| 10 | [0001] | Spring Retainer | |
| 11 | 4871223 | [0001] | Piston ring |
| 12 | 4720863 | [0001] | Piston |
| 13 | 4720864 | [0002] | Piston ring |
| 14 | 11037057 | [0001] | Gear |
| 15 | 4720865 | [0001] | Piston ring |
| 16 | 4871531 | [0001] | Step piston |
| 17 | 914478 | [0001] | Snap ring |
| 18 | 4871411 | [0001] | Piston |
| 1 | 4720851 | [0001] | Clutch shaft |
| 19 | 4871541 | [0001] | Piston ring |
| 20 | 4871428 | [0001] | Piston ring |
| 21 | 4871532 | [0001] | Spring |
| 22 | 4873015 | [0009] | Friction disc |
| 23 | 4720762 | [0009] | Steel disc |
| 24 | 11037145 | [0001] | Pressure plate |
| 25 | 4786536 | [0001] | Lock ring |
| 26 | 4871692 | [0001] | Clutch Hub |
| 27 | 4786526 | [0001] | Lock ring |
| 28 | 4871338 | [0004] | Thrust washer |

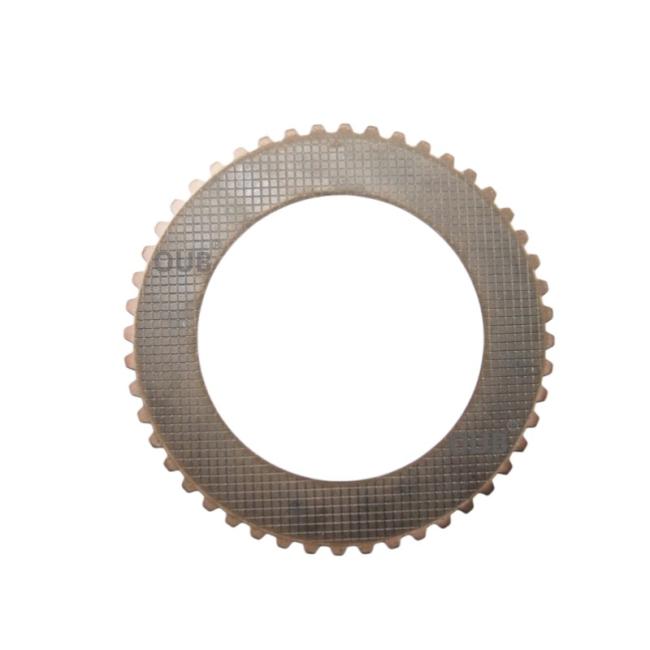

3. Picture details of 4720856:
4. Part No.on the Group
| Part No. | Part No. |
| 795322 | 11037030 |
| 4720763 | 11037196 |
| 4720856 | 11102319 |
| 4871796 | 11102321 |
| 4871966 | 11103170 |
| 4873042 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2: What is the minimum order quantity for the Friction Disc?
A2: The minimum order quantity for the Friction Disc is 1.
Q3. How many teeth of the friction?
A3. We can tell you the teeth qty if you offer the part No. .
Q4. Can you quote for only one part number?
A4. Of cause.We can check by a part no.or machine no.or size or picture.
Q5: What is the delivery time for the Friction Disc?
A5: The delivery time for the Friction Disc is within 3-10 days after getting your deposit
7. Exhibition & Warehous
Machine NO. ,Model No. Part No. , And More
