237017A1 BRAKE DISC 237017A1 - Case 590SL 590SM 590L
Price:
Negotiable
MOQ:
10 Pcs/Accept trial order
Delivery Time:
Within 5-15 days after getting your desposit
Brand:
OUB
Product Description
1. Product Details
| Part NO. | 237017A1 |
| Machine |
CASE |
| Model | Case 590SL 590SM 590L |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gray |

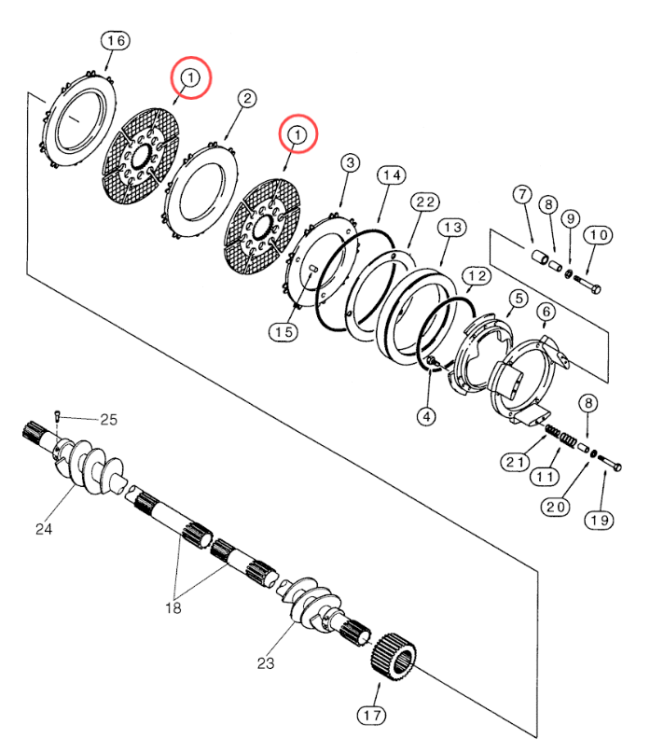

2. 237017A1 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 1 | 237017A1 | [4] | BRAKE DISC |
| 2 | 237018A1 | [2] | FRICTION WASHER |
| 3 | 237019A1 | [2] | LARGE PLATE |
| 4 | 864-8016 | [18] | HEX SOC SCREW |
| 5 | 196076A1 | [2] | FLANGE |
| 6 | 196077A1 | [2] | FLANGE |
| 7 | 190449A1 | [6] | SPLIT PIN |
| 8 | 190496A1 | [12] | BUSHING |
| 9 | 190450A1 | [6] | WASHER |
| 10 | 814-6035 | [6] | BOLT,Hex |
| 11 | 237026A1 | [6] | SPRING |
| 12 | 196078A1 | [2] | O-RING |
| 13 | 196079A1 | [2] | PISTON |
| 14 | 238-8274 | [2] | O-RING |
| 15 | 190447A1 | [6] | SPLIT PIN |
| 16 | 237020A1 | [2] | LARGE PLATE |
| 17 | 196082A1 | [2] | SLEEVE |
| 18 | 196083A1 | [2] | HALF SHAFT |
| 19 | 864-6035 | [6] | HEX SOC SCREW |
| 20 | 190500A1 | [6] | COVER |
| 21 | 237025A1 | [6] | SPRING |
| 22 | 192911A1 | [2] | SHIM |
| 23 | 329475A1 | [1] | CUTTER |
| 24 | 329476A1 | [1] | AUGER |
| 25 | 863-6020 | [2] | HEX SOC SCREW |
| . . | 248071A1 | [1] | SERVICE KIT |
| 25 | S301742 | [20] | WASHER |
| 26 | S301743 | [20] | BOLT |
| 27 | S301729 | [2] | PLUG |
| 28 | K12362 | [4] | PLUG |
| 29 | NSS | [1] | |
| 30 | S301737 | [4] | WASHER |
| 31 | S301738 | [4] | PLUG |
| 32 | S92341 | [92] | WASHER |
| 33 | 29-1714 | [92] | NUT |

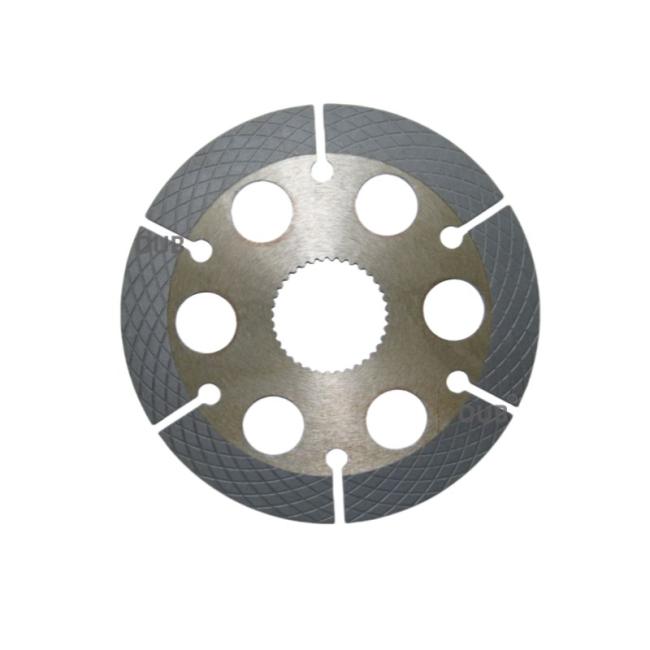

3. Picture details of 237017A1:
4. Part No.on the Group
| 100049A1 | 3125322R2 |
| 100050A1 | A188412 |
| 237017A1 | D50040 |
| 237021A1 | D50081 |
| 237023A1 | D50084 |
| 308029A1 | K963646 |
| 308030A1 |
5. Our advantages
- We are a factory and we also have our own sales team.
- We have original software system data to support which 100% accurate.
- We know how to protect your equipment with high-quality products and professional knowledge.
6. FAQ
Q1: What is the brand name of the Friction Disc?
A1: The brand name of the Friction Disc is OUB.
Q2. How many teeth of the friction?
A2. We can tell you the teeth qty if you offer the part No. .
Q3. Can you quote for only one part number?
A3. Of cause.We can check by a part no.or machine no.or size or picture.
Q4. Are you a factory or a trader?
A4. We are a factory and we also have our own sales team.
7. Exhibition & Warehous
Machine NO. ,Model No. Part No. , And More
