381-922551-1 Clutch Disc 3819225511 Friction Plate for Komatsu 505 507 510 515 520B 530 530B 540 540B JH65C JH65CH JH65C
1. Product Details
| Part NO. | 381-922551-1 3819225511 |
| Machine | Komatsu |
| Model | 505 507 510 515 520B 530 530B 540 540B JH65C JH65CH JH65CV JH80C W20, W30 |
| Size | OEM Standard |
| Material | HQC,HQP,HQE |
| Color | Silver Gold BLACK |

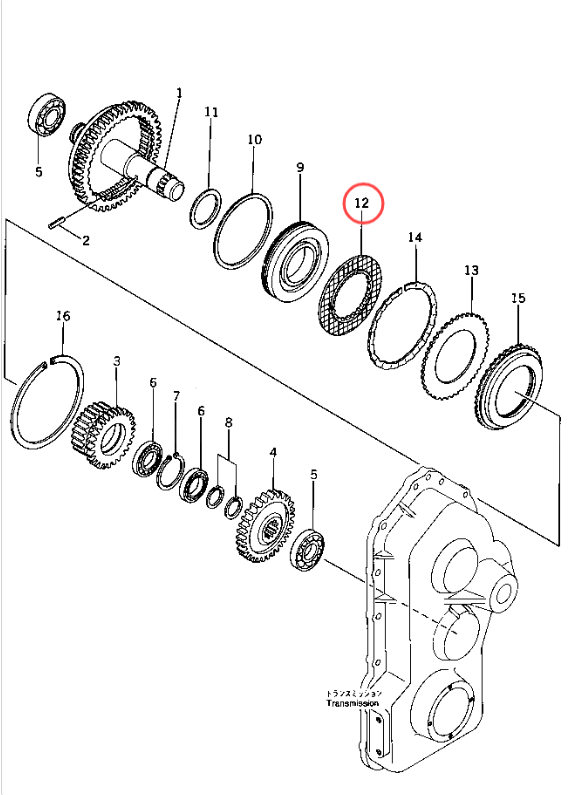

2. 381-922551-1 ON GROUP:
| Pos. | Part No | Qty | Parts name |
| 385-10135983 | [1] | TRANSMISSION | |
| 385-10135982 | [1] | TRANSMISSION | |
| 385-10135981 | [1] | TRANSMISSION | |
| 385-10259021 | [1] | SHAFT ,LOWER | |
| 385-10096102 | [1] | SHAFT ,LOWER | |
| 385-10096101 | [1] | SHAFT ,LOWER | |
| 1 | 385-10259031 | [1] | SHAFT |
| 385-10095962 | [1] | SHAFT | |
| 385-10095961 | [1] | SHAFT | |
| 2 | 382-017134-1 | [1] | PIN |
| 3 | 385-10059771 | [1] | GEAR¤ 27 TEETH |
| 4 | 385-10095861 | [1] | GEAR¤ 32 TEETH |
| 5 | 385-10178621 | [2] | BEARING |
| 385-10095891 | [2] | BEARING | |
| 6 | 385-10178651 | [2] | BEARING |
| 385-10095911 | [2] | BEARING | |
| 7 | 04065-06825 | [1] | RING |
| 8 | 04064-04518 | [2] | RING |
| 9 | 385-10096061 | [1] | PISTON |
| 10 | 385-10096071 | [1] | RING,LARGE |
| 11 | 385-10096081 | [1] | RING,SMALL |
| 12 | 381-922551-1 | [2] | PLATE,FRICTION |
| 13 | 381-922549-1 | [3] | PLATE,SEPARATOR |
| 14 | 381-922913-1 | [2] | SPRING |
| 15 | 381-922548-3 | [1] | PLATE |
| 385-11117791 | [1] | PLATE | |
| 16 | 381-922535-1 | [1] | RING |

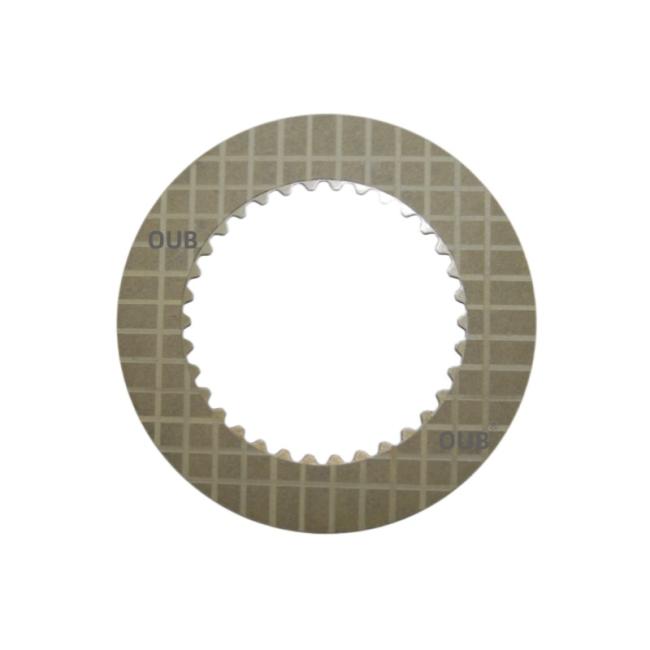

3. Picture details of 381-922551-1:
4. PART NO. ON THE GROUP
| Part No. | Part No. |
| 3EA-15-11180 | 110-22-11332 |
| 131-21-43220 | 111-11-12120 |
| 150-21-23111 | 113-15-22720 |
| 175-22-11140 | 113-15-22730 |
| 232-25-51430 | 124-15-52710 |
| 235-25-11360 | 125-15-32750 |
| 281-15-12720 | 131-10-11110 |
| 381-922551-1 | 131-10-11120 |
